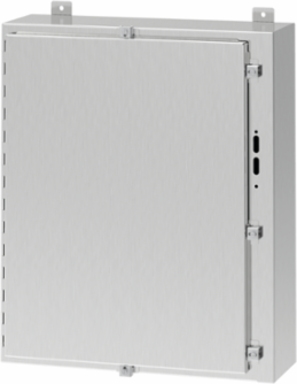

nVent Hoffman A36HS2508SS6LP Wallmount Disconnect Enclosure with Clamps Type 4X, 36x25x8, Brushed, SS316
- MPN: A36HS2508SS6LP
- UPC: 783510644109
- PPN: HOF-A36HS2508SS6LP
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Disconnect Enclosures with Clamps include door bracket for attaching disconnect door catch. This Wallmount Disconnect Enclosure with Clamps Type 4X, A36HS2508SS6LP item measures 36x25x8 inches with material SS316 finish Brushed.
Features
- Seams continuously welded and ground smooth
- External mounting brackets
- External-formed flange around all sides of enclosure opening
- Stainless steel door clamps on three sides of door
- Door removed by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Seamless foam-in-place gasket
- Collar studs provided for mounting optional panels
- Holes provided in body for mounting disconnect operating handle and operating mechanism
- Bonding provision on door; ground stud on body
- All exterior hardware on Type 316L enclosures matches the enclosure material
- Adjustable door interlock bracket fastened to door
Documentation & Downloads
Specifications
Additional
- Protection Rating
- NEMA Type 4X Watertight, corrosion-resistant
- Material
- Stainless Steel 316L
- Weight
- 68 lb
- Height (H)
- 914 mm
- Thickness (T)
- 1.98 mm
- Data Pocket Size (D x E)
- 305 x 305 mm
- BABA
- Compliant
- Seams
- Continuously welded and ground smooth
- Door Removal
- By pulling stainless steel continuous hinge pin
- Gasket
- Seamless foam-in-place
- Collar Studs
- Provided for mounting optional panels
- Hardware Material
- Matches 316L enclosure material
- Holes for Mounting
- Provided in body for disconnect operating handle and mechanism
Size36.00 x 25.38 x 8.00 in
FinishBrushed #4
Depth (D)203 mm
Width (W)645 mm
Clamp Quantity5
IP RatingIP66
Gauge14 gauge
Door ClampsStainless steel, three sides
Data Pocket MaterialHigh-impact thermoplastic
Mounting BracketsExternal
Bonding ProvisionOn door, ground stud on body
Interlock BracketAdjustable, fastened to door
