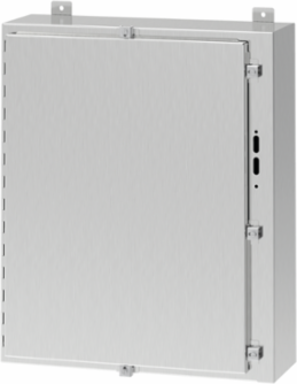

nVent Hoffman A36HS3108SS6LP Wallmount Disconnect Enclosure with Clamps Type 4X, 36x31x8, Brushed, SS316
nVent Hoffman A36HS3108SS6LP Wallmount Disconnect Enclosure with Clamps Type 4X, 36x31x8, Brushed, SS316
- MPN: A36HS3108SS6LP
- UPC: 783510644307
- PPN: HOF-A36HS3108SS6LP
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Disconnect Enclosures with Clamps include door bracket for attaching disconnect door catch. This Wallmount Disconnect Enclosure with Clamps Type 4X, A36HS3108SS6LP item measures 36x31x8 inches with material SS316 finish Brushed.
Features
- Seams continuously welded and ground smooth
- External mounting brackets
- External-formed flange around all sides of enclosure opening
- Stainless steel door clamps on three sides of door
- Door removed by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Seamless foam-in-place gasket
- Collar studs provided for mounting optional panels
- Holes provided in body for mounting disconnect operating handle and operating mechanism
- Bonding provision on door; ground stud on body
- All exterior hardware on Type 316L enclosures matches the enclosure material
- Adjustable door interlock bracket fastened to door
Specifications
Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 797
- Protection Rating
- NEMA Type 4X
- Thickness (T)
- 1.98
- Data Pocket Size (D x E)
- 305 x 305
- NEMA Rating
- 4X Watertight, corrosion-resistant
- Material
- Stainless Steel
Height (H)914
Depth (D)203
FinishBrushed #4
Clamp Quantity7
IP RatingIP66
Weight83
Size36.00x31.38x8.00 in
Downloads
