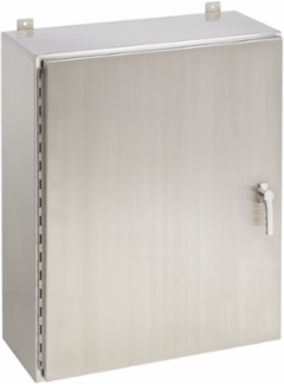

nVent Hoffman A42H3612SSLP3PT Wallmount 3-Point Latch Type 4X, 42x36x12, Brushed, SS 304
- MPN: A42H3612SSLP3PT
- UPC: 783510167141
- PPN: HOF-A42H3612SSLP3PT
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These enclosures feature nVent HOFFMAN's exclusive PowerGlide Handle with 3-point latching. This Wallmount 3-Point Latch Type 4X, A42H3612SSLP3PT item measures 42x36x12 in. with a material of SS304, Brushed.
Features
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Rolled lip around three sides of door
- Internal 3-point latch and Type 316L stainless steel padlocking PowerGlide Handle
- Remove door by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
- Bonding provision on door; grounding stud on body
Documentation & Downloads
Specifications
Additional
- NEMA Rating
- 4X Watertight, corrosion-resistant
- IP Rating
- IP66
- Height (H)
- 1,067 mm
- Depth (D)
- 305 mm
- Weight
- 122 lb
- Finish
- Brushed #4
- Door Closure
- Internal 3-point latch
- Seams
- Continuously welded and ground smooth
- Door Lip
- Rolled on three sides
- Bonding Provision
- On door; grounding stud on body
- Hardware Material
- Matches enclosure material (Type 316L stainless steel for 316L enclosures)
Protection RatingNEMA Type 12
Size42 x 36 x 12 in
Width (W)914 mm
Thickness (T)2 mm
Material304 Stainless Steel
Data PocketLarge high-impact thermoplastic
HandlePowerGlide, Type 316L stainless steel padlocking
GasketSeamless foam-in-place
HingeStainless steel continuous hinge pin, removable door
Panel MountingCollar studs provided
BABAYes, BABA Compliant
