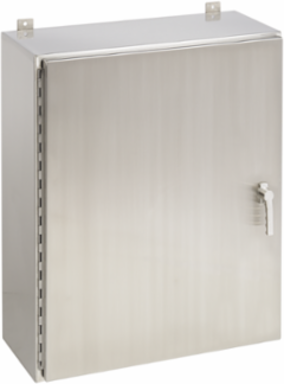

nVent Hoffman A48H3612SS6LP3PT Wallmount 3-Point Latch Type 4X, 48x36x12, Brushed, SS 316
nVent Hoffman A48H3612SS6LP3PT Wallmount 3-Point Latch Type 4X, 48x36x12, Brushed, SS 316
- MPN: A48H3612SS6LP3PT
- UPC: 783510143466
- PPN: HOF-A48H3612SS6LP3PT
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
These enclosures feature nVent HOFFMAN's exclusive PowerGlide Handle with 3-point latching. This Wallmount 3-Point Latch Type 4X, A48H3612SS6LP3PT item measures 48x36x12 in. with a material of SS316, Brushed.
Features
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Rolled lip around three sides of door
- Internal 3-point latch and Type 316L stainless steel padlocking PowerGlide Handle
- Remove door by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
- Bonding provision on door; grounding stud on body
Specifications
Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 914
- Protection Rating
- NEMA Type 12
- Thickness (T)
- 2
- IP Rating
- IP66
- Material
- Stainless Steel
- NEMA Rating
- 4X Watertight, corrosion-resistant
Height (H)1,219
Depth (D)305
FinishBrushed #4
Data PocketLarge
Weight130
Size48.00x36.00x12.00 in
