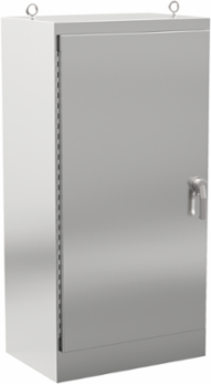

nVent Hoffman A722418SSFSN4 Stainless Steel Freestanding Enclosure 72 Inch x 24 Inch x 18 Inch, NEMA 4X
- MPN: A722418SSFSN4
- UPC: 783510111434
- PPN: HOF-A722418SSFSN4
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Designed to house systems incorporating large components or complex mounting configurations. This Freestand 1 Door Single Access 3Pt Type 4X, A722418SSFSN4 item measures 72x24x18in. with a material of SS304 finish Brushed.
Features
- Seams continuously welded and ground smooth; no holes or knockouts
- Two-door enclosures provided with a removable centerpost for easy panel installation
- Heavy-duty lifting eyes are Type 316L stainless steel
- Heavy-duty three-point latching mechanism operated by Type 316L stainless steel PowerGlide padlocking handle
- Seemless foam-in-place gasket assures a water-tight and dust-tight seal
- Body flange trough collar excludes liquids and contaminants
- Heavy-gauge continuous hinges support each door
- High-impact thermoplastic data pocket provided with each enclosure
- Mounting channels welded horizontally to interior body sides at top, bottom and center
- Optional panels and rack mounting angles can be mounted anywhere along channels
- Bonding provision on door; grounding stud on body
- Accessory mounting channel provided in enclosure top
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 611
- Protection Rating
- NEMA Type 4X
- Thickness (T)
- 2.78
- Weight
- 291
- Size
- 72.06x24.06x18.06 in
Height (H)1,830
Depth (D)459
FinishBrushed #3
IP RatingIP66
MaterialStainless Steel
NEMA Rating4X Watertight, corrosion-resistant
