nVent Hoffman A72HS3624SSLPQT Single-Door Freestand Type 4X 1/4-Turn Latches, 72x36x24, Brushed, SS304
- MPN: A72HS3624SSLPQT
- UPC: 783510191672
- PPN: HOF-A72HS3624SSLPQT
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

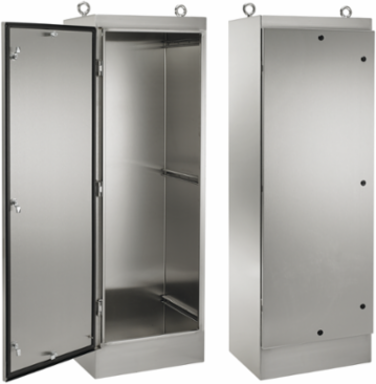

Freestanding single door enclosure is ideal for indoor or outdoor use. This Single-Door Freestand Type 4X 1/4-Turn Latches, A72HS3624SSLPQT item measures 72x36x24in. with a material of SS304 finish Brushed.
Features
- Freestanding enclosure with quarter turn latching
- Seams continuously welded and ground smooth
- Flange trough collar on all four sides of door openings
- Seamless foam-in-place one-piece gasket provides water-, oil- and dust-tight seal against contaminants
- Black die-cast quarter-turn latches with slotted insert provided on three sides of door
- Concealed stainless steel hinges provide 180-degree door opening and allow easy door removal and cleaning of hinge area
- Heavy-duty Type 316L stainless steel lifting eyes
- Internal accessory mounting channels welded horizontally to sides at top, bottom and center
- High-impact plastic Data Pocket kit, attached with pressure-sensitive adhesive, is included with enclosure
- Bonding provision on door; grounding stud on body
- Accessory mounting channel provided in enclosure top
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 916
- Protection Rating
- NEMA Type 12
- Thickness (T)
- 1.98
- NEMA Rating
- 12 Indoor, dust-resistant
- Material
- SS Type 304
Height (H)1,830
Depth (D)611
FinishBrushed #4
IP RatingIP66
Weight326
Size72.13x36.06x24.15 in
