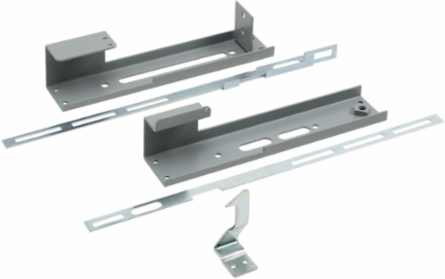

nVent Hoffman SQDC Operator Adapter Universal Cutout, Square D Cable Oper, Gray, Steel
- MPN: SQDC
- UPC: 783510280987
- PPN: HOF-SQDC
- UNSPSC: 39121321
CAD
$382.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Provides correct mounting pattern for specific disconnect model used with a Universal Disconnect Cutout. This Operator Adapter Universal Cutout, SQDC item, supplier Square D Cable Oper has a material of Steel colored Gray.
Features
- Used on all nVent HOFFMAN Type 4 and 12 disconnect enclosures with a universal flange cutout
- An operator adapter is required to install a disconnect in Bulletin A21, A28, A34, A35 and A4L3D HOFFMAN enclosures that have a universal cutout
- Operator adapters include an adapter plate and additional components needed to interlock the primary door with the disconnect operating mechanism
- Installation instructions are included with each operator adapter
- Each brand and type of disconnect requires a different operator adapter
- A 400A (or greater) disconnect switch and 600A (or greater) circuit breaker require the large handle
- A 200A (or less) disconnect switch and 400A (or less) circuit breaker require a small handle
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 62
- Material
- Mild Steel
- Color
- Gray
- Thickness (T)
- 2.66
- Accessory Type
- Mounting Accessories
- Works With
- NEMA
Height (H)268
Depth (D)13
FinishPowder Coated
Color CodeANSI 61
Brand and Type of OperatorSquare D® Class 9422 Flex-Cable Mechanisms
Weight1.5
Consist ofOperator Adapter
