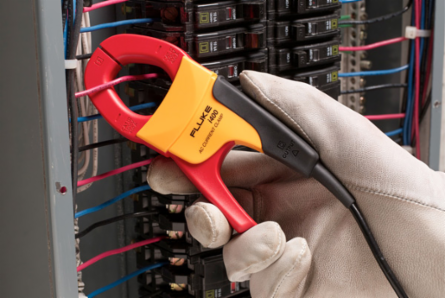

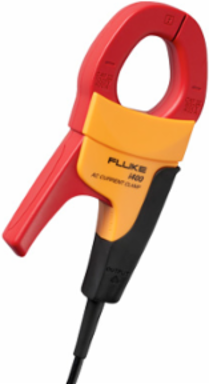

Fluke I400 Fluke i400 AC Current Clamp
- MPN: I400
- UPC: 095969268608
- PPN: FLU-I400
CAD
$296.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Fluke i400 AC current clamps extend the use of digital multimeters. Get a single range 400 A AC clamp in a compact shape. Buy Online Now.
Features
- Companion to your DMM to measure up to 400 A AC
- 1 mA/Amp output guarantees easy reading on you meter
- Only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating
- Specially designed to offer maximum utility in a very compact shape
- Take accurate current readings without breaking the circuit
- Soft non-slippery overmold handle prevents from accidental touching live wiring
- Max. conductor Ø 32 mm
Documentation & Downloads
Specifications
Additional
| Basic accuracy | (% reading + floorspec) |
|---|---|
| Basic accuracy | (45-400 Hz) |
| Maximum non-destructive current | 1000 A |
| Continuous current range | 1 A - 400 A |
| Output level(s) | 1 mA/A |
| Lowest measurable current | 1 A |
|---|---|
| Nominal current range | 400 A |
| Useable frequency | 5 Hz - 20 kHz |
| Basic accuracy | 2% + 0.06 A |
Mechanical and General Specifications
| Warranty | 1 year |
|---|---|
| Maximum conductor diameter | 32 mm (1.25 in) |
| Output cable length | 1.5 m (59 in) |
| Shrouded banana plugs | Yes |
|---|---|
| Maximum conductor size (busbar) | 750 MCM |
Safety Specifications
| Maximum voltage | 1000 V AC rms from earth to ground, in compliance with EN61010 |
|---|
| Safety | CAT IV 600 V, CAT III, 1000 V |
|---|
