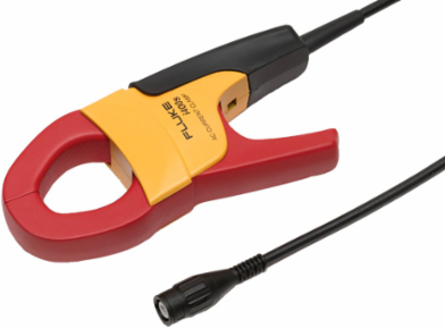

Fluke I400S Fluke I400S AC CURRENT CLAMP
- MPN: I400S
- UPC: 095969268585
- PPN: FLU-I400S
CAD
$536.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This AC current clamp with BNC output extends the functionality of portable oscilloscopes or power quality meters to measure up to 400 A AC. Buy Online Now.
Features
- High safety AC Current Clamp with BNC output
- Companion to your scope or power quality meter to measure up to 400 A AC
- Only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating
- Specially designed to offer maximum utility in a compact shape
- Take accurate current readings without breaking the circuit
- Soft non-slippery overmold handle
- Optional PM9081/001 BNC/Banana adapter for DMM's
- Two ranges: 40 A and 400 A, 10 and 1 mV/Amp output
- Max. conductor Ø 32 mm
Specifications
Mechanical and General Specifications
| Warranty | 1 year |
|---|---|
| Weight | 114 g |
| BNC adapter | Yes |
| Output cable length | 2.5 m (8.2 ft) |
|---|---|
| Maximum conductor size | 32 mm (1.25 inches) |
| Dimensions | 150 x 70 x 30 mm |
Safety Specifications
| Safety | CAT IV, 600 V, CAT III, 1000 V |
|---|
| Maximum non-destructive current | 1000 V AC |
|---|
