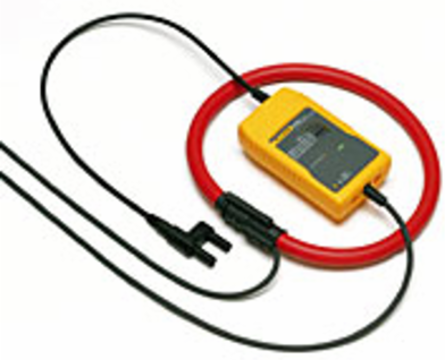

Fluke i2000 Flex Fluke i2000 Flex AC Current Clamp
- MPN: i2000 Flex
- UPC: 095969345088
- PPN: FLU-I2000 FLEX
CAD
$824.01
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fluke i2000 Flex AC Current Clamp
Features
- Three ranges: 20A, 200 A & 2000 A, 100 mV/A, 10 mV/A & 1 mV/A output
- Ideal for current measurement on thick and hard to reach conductors without breaking the circuit
- Maximum conductor diameter 178 mm
- CAT III 600 V safety rating
Specifications
Electrical specifications
- Accuracy
- at +25°C ±1% of range (45 Hz to 65 Hz)
- Power supply
- 2 x AA/MN 1500/LR6 Alkaline, 200 hours, low battery indicator
- Noise
- 8 mV AC rms (30 A) 2 mV AC rms (300 A, 3000 A)
- External field
- with cable > 200 mm from the head ±1% of range
- Working voltage
- see Safety standards section 600 V AC rms or DC
- Linearity
- 10% to 100% of range ±0.2% of reading
- Output sensitivity (AC-coupled)
- 1 mV 10 mV 100 mV 1 mV per A
Current ranges20 A 200 A 2000 A AC rms
Load impedance100 kΩ minimum
Temperature Coefficient±0.08% of reading per °C
Frequency range10 Hz to 20 kHz (-3 dB)
Phase error< ±1° (45 Hz to 65 Hz)±10° (at 20 kHz)
Position sensitivitywith cable > 25 mm from the coupling ±2% of range
General Specifications
- Output connection
- Molded 4 mm safety plugs (not integrated)
- Safety standards
- EN 61010-031: 2002 EN 61010-2-032: 2002 EN 61010-1: 2001 600 Vrms, Category III, Pollution Degree 2 Use of the probe on uninsulated conductors is limited to 600 V ac rms or dc and frequencies below 1 kHz.
- Storage temperature range
- -40°C to +105°C (-40°F to 221°F) (head) -20°C to +85°C (-4°F to 185°F) (electronics)
- Head Circumference
- 610 mm (24 in)
- Operating humidity
- 15% to 85% (non-condensing)
- Weight
- 180 g (6.34 oz) (head) 190 g (6.70 oz) (electronics)
Operating temperature range0°C to +70°C (32°F to 158°F) (head and electronics)
Dimensions (H x W x D)116 x 68.5 x 30 mm (4.56 x 2.69 x 1.18 in)
Cable length (head to electronics)2 m (6.56 ft)
EMC standardsEN 61326: 1998 +A1, A2, and A3
Head bend radius38.1 mm (1.5 in)
Head cable diameter14.3 mm (0.56 in)
