Klein Tools ET45VP AC/DC Voltage & GFCI Receptacle Test Kit, 4.63 Inch Width, IP44 Ingress Protection
- MPN: ET45VP
- UPC: 092644692994
- PPN: KLT-ET45VP
- UNSPSC: 41113637
CAD
$32.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

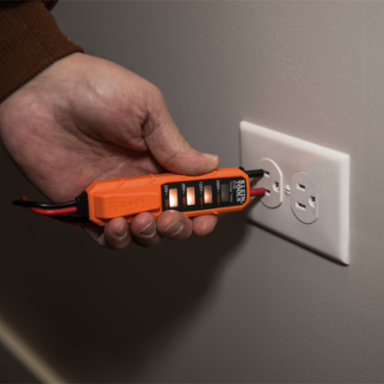

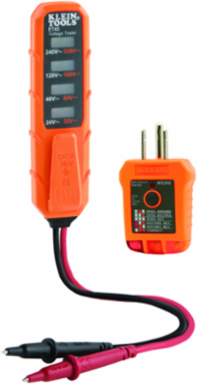

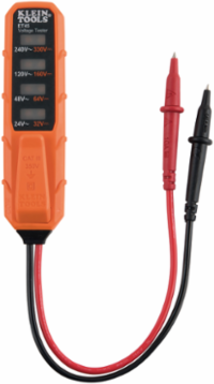

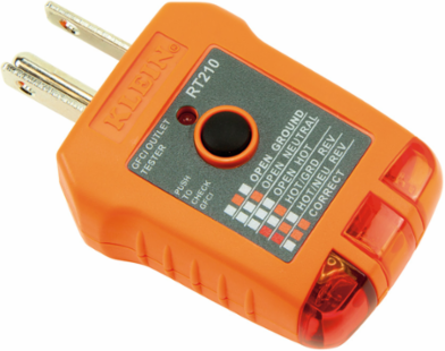

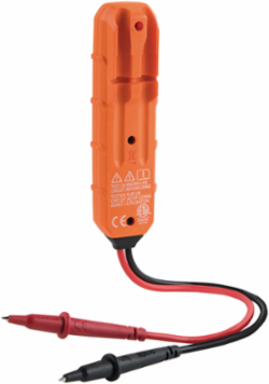

Klein Tools' Cat. No. ET45VP Kit includes an Electronic Voltage Tester, Cat. No. ET45 and a Receptacle Tester, Cat. No. RT210. The ET45 is designed as a simple, easy to use tester to check, verify or troubleshoot common residential electrical wiring in electrical outlets, light fixtures, doorbells and more. This tester does not require batteries, and features a pocket clip for convenient carrying. The RT210 is designed to detect the most common wiring problems in standard and GFCI receptacles. A convenient chart on the tester helps determine wiring condition in outlet, based on LED lights results. Conditions indicated: open ground, reverse polarity, open hot, open neutral, hot / ground reversed.
Features
- Electronic voltage tester is designed to test AC voltages from 24 to 240V AC at four useful levels
- Tests DC voltages from 32 to 330V at four levels

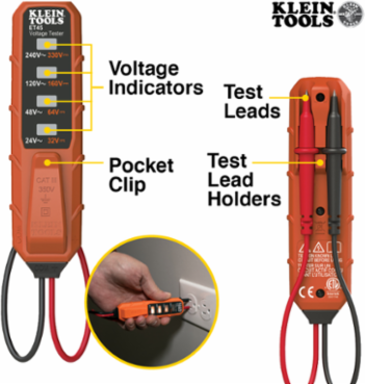

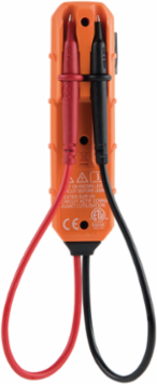

- Built-in test lead holder on back of voltage tester holds the leads in one of two positions: one so that they are spaced correctly to test tamper-resistant US-style outlets and the other for convenient storage of the test leads
- Batteries not required; voltage tester is powered by the applied voltage
- Voltage tester is rated CATIII 350V, Class 2, Double insulation and has IP44 ingress protection

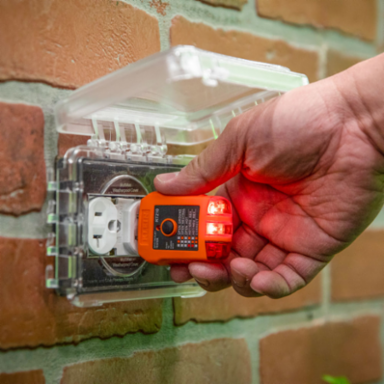

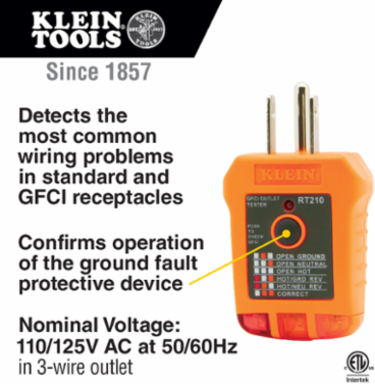

- Receptacle tester detects the most common wiring problems in standard and GFCI receptacles

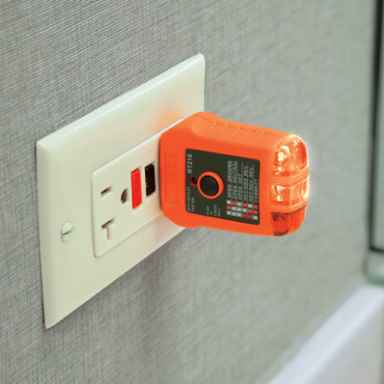

- Works on GFI outlets and confirms operation of the ground fault protective device
- Nominal Voltage of receptacle tester: 110/125V AC at 50/60Hz in 3-wire outlet
- ET45: Built-in Test Lead Holders; RT210: Convenient Chart on the Tester
Documentation & Downloads
Specifications
Key Specifications
- Type
- ET45 - Electronic Products; RT210 - GFCI and Standard Receptacle Tester
- Material
- Plastic Housing, PCB with Electronic Components
- Included
- ET45 Electronic Voltage Tester; RT210 Receptacle Tester
- Pollution Degree
- ET45 - 2
- Ingress Protection
- ET45 - IP44
- Drop Protection
- ET45 - 9.9' (3 m); RT210 - 6.6' (2 m)
- Display
- ET45 - Analog LED
- Voltage
- ET45 - AC Level Indicators - 24V, 48V, 120V, 240V; DC Level Indicators - 32V, 64V, 160V, 330V; RT210 - 110/125V AC at 50/60Hz in. 3-Wire Outlet
- Weight (oz)
- 3.6
- Lead Length (Feet)
- 9
- Overall Width (cm)
- 11.8
- Lead Length (m)
- 2.7
- Weight (g)
- 102
- Width
- 4.6300 in
- Weight
- 0.2240 lbs
ApplicationMeasure AC/DC Voltage and Determine Wiring Condition in Outlet
StandardET45: CATIII 350V, CE
Tests ContinuityNo
FrequencyET45 - 50/60 Hz
Integral Lead StorageYes
Case IncludedNo
Interchangeable LeadsNo
Overall Width (Inch)4.63
Overall Height (Inch)1.38
Overall Length (Inch)7.88
Overall Height (cm)3.5
Overall Length (cm)20
Height1.3800 in
Depth7.8800 in
