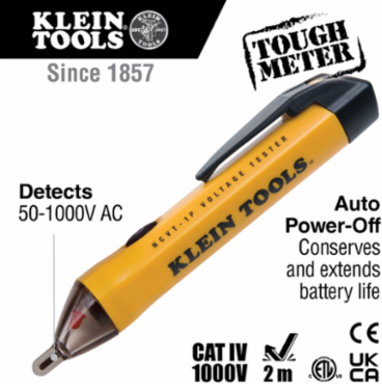

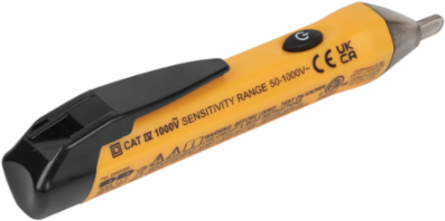

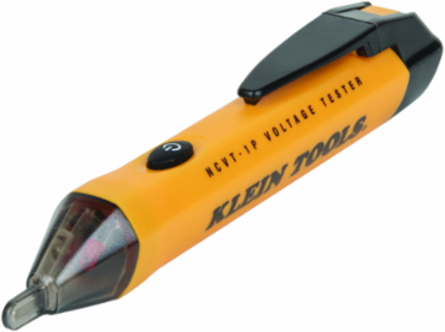

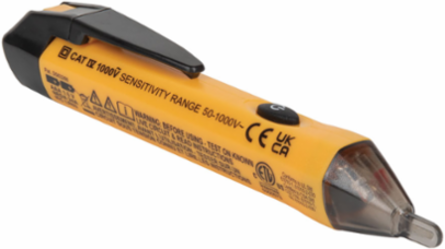

Klein Tools NCVT1P Non-Contact Voltage Tester Pen, 50-1000V AC, 6.6 Foot Drop Protection
- MPN: NCVT1P
- UPC: 092644693700
- PPN: KLT-NCVT1P
- UNSPSC: 41113637
CAD
$31.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

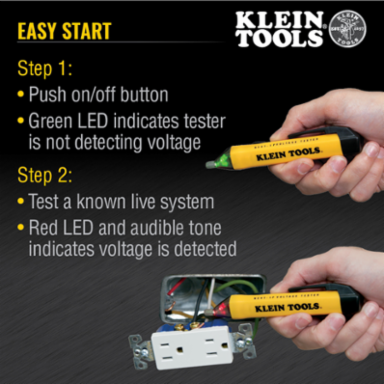

Klein Tools Non-Contact Voltage Tester detects standard voltage in cables, cords, circuit breakers, lighting fixtures, switches, non tamper-resistant outlets and wires. A bright green LED indicates the tester is powered on. It changes to red and an audible tone sounds when voltage is detected.
Features
- Voltage Tester provides non-contact detection of voltage in cables, cords, circuit breakers, lighting fixtures, switches, non tamper-resistant outlets and wires
- Volt Pen with high intensity, bright green LED indicates the tester is powered on
- When voltage is detected, a high intensity, bright red LED illuminates and an audible tone will sound
- 50 to 1000 VAC power operating range allows broad application
- Auto power-off feature conserves and extends battery life
- CAT IV 1000V safety rating
- Lightweight compact design with a convenient clip to fit securely in your pocket
- Product not recommended for testing tamper-resistant outlets; use Cat. Nos. NCVT-2P or NCVT-3P in low voltage mode

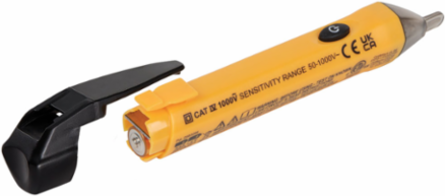

- Includes instructions and 2 x AAA 1.5 volt batteries
- 6.6-Foot (2 m) drop protection
- LED and Audible Beep Indications, Auto-Power Off, Pocket Clip
Documentation & Downloads
Specifications
Key Specifications
- Frequency
- 50 - 500 Hz
- Batteries
- 2 x AAA
- Drop Protection
- 6.6' (2 m)
- Material
- Polymer Body and Electronic Components
- Included
- NCVT; Instructions; 2 x AAA 1.5 Volt Batteries
- Overall Height
- 1.8 cm (0.72 Inch)
- Overall Length
- 5.5 Inch (14 cm)
- Width
- 0.7200 in
- Weight
- 0.0500 lbs
ApplicationNon-Contact Detection and Testing of AC Voltage; Not Recommended for Tamper-Resistant Outlets
Pollution Degree2
StandardCAT IV 1000V
TypeVoltage Tester Pen
Voltage50 - 1000V AC
Overall Width2.5 cm (1 Inch)
Height1.0000 in
Depth5.5000 in
