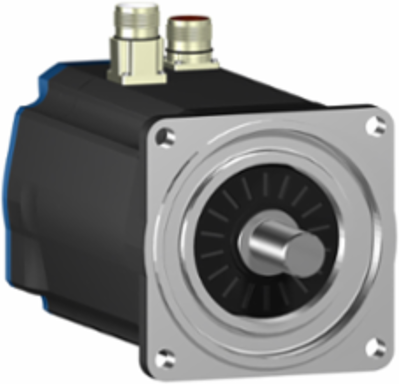

Schneider Electric BSH1402T21F1P AC Servo Motor, 14.4 N.m Torque, 3000 RPM, IP65, 17.7 kg
- MPN: BSH1402T21F1P
- PPN: SCH-BSH1402T21F1P
CAD
$3740.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric BSH1402T21F1P AC Servo Motor is engineered for high-performance motion control applications, delivering impressive torque of 14.4 N.m at a remarkable speed of 3000 RPM. With an IP65 rating, this motor is designed to withstand dust and water ingress, making it suitable for a variety of demanding industrial environments. Weighing 17.7 kg, it offers a dependable solution for enhancing automation and control systems, ensuring precision and reliability in motion tasks across various applications.
Documentation & Downloads
Specifications
Additional
- Nominal Output Power
- 3900 W, 2900 W depending on model
- Continuous Stall Torque
- 19.5 N.m, 14.4 N.m depending on model
- Holding Torque
- 23 N.m holding brake
- Maximum Mechanical Speed
- 4000 rpm
- Continuous Stall Current
- 22.5 A
- Supply Voltage
- 480 V
- Stator Resistance
- 0.6 Ohm 20 B0C
- Stator Electrical Time Constant
- 12.1 ms 20 B0C
- Maximum Axial Force
- 0.2 x radial force
- Back Emf Constant
- 101 V/krpm 120 B0C
- Length
- 310.5 mm
- Shaft Length
- 50 mm
- Centring Collar Diameter
- 130 mm
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 165 mm
- Shaft End
- untapped
- Weight
- 17.7 kg
- Type of Cooling
- Natural convection
- Holding Brake
- with
- IP Degree of Protection
- IP65 standard, IP67 with kit
- Sustainable Offer Status
- Green Premium
- China RoHS Regulation
- Yes
- REACH Regulation
- Contains Substances of Very High Concern above threshold
Nominal Torque12.3 N.m, 9.2 N.m depending on model
Peak Stall Torque59.3 N.m, 24.56 N.m depending on model
Nominal Speed3000 rpm
Maximum Current Irms75.2 A
Switching Frequency8 kHz
Number of Motor Poles10
Stator Inductance7.4 mH 20 B0C
Maximum Radial Force1680 N at 3000 rpm, 1930 N at 2000 rpm, 2430 N at 1000 rpm
Torque Constant1.47 N.m/A 120 B0C
Speed Feedback Resolution131072 points/turn
Shaft Diameter24 mm
Motor Flange Size140 mm
Centring Collar Depth3.5 mm
Mounting Holes Diameter11 mm
Electrical Connectionstraight connectors
Mounting Supportinternational standard flange
MaterialNot specified
Feedback TypeSingle turn SinCos Hiperface
Product Or Component Typeservo motor
Range CompatibilityLexium 32, Lexium 05
EU RoHS DirectivePro-active compliance (product out of EU RoHS legal scope)
Mercury FreeYes
