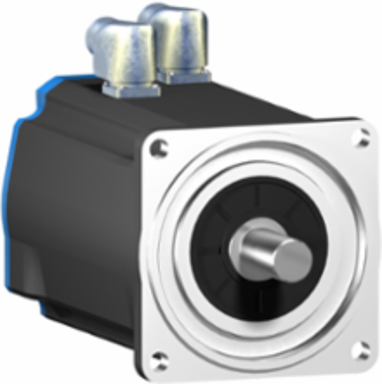

Schneider Electric BSH1404P21A2P Lexium 32 Servo Motor, 32.1 N.m Torque, 3000 RPM, 140mm Flange, IP65

MPN: BSH1404P21A2P
PPN: SCH-BSH1404P21A2P

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$3685.52/ EA

Qty:

Loading add to cart quantity...

Description

Engineered for precision and performance, this servo motor from Schneider Electric is a standout in the realm of motion control solutions. With a robust torque rating of 32.1 N.m and a maximum speed of 3000 RPM, it is designed to meet the rigorous demands of automation applications. The 140mm flange allows for versatile integration into a range of setups, while the IP65 rating ensures reliability in environments where dust and moisture resistance is critical. This motor seamlessly combines cutting-edge technology with robust engineering, making it an essential component for industrial automation systems.

Specifications

Nominal Speed: 2500 - 3000 rpm

Nominal Output Power: 3400 - 5000 W

Peak Stall Torque: 63.09 - 103.6 N.m

Maximum Axial Force: 0.2 x Radial Force

Maximum Current: 72 - 95.6 A

Voltage: 380-480 V three phase

Length: 382.5 mm (15.06 in)

Shaft Length: 50 mm (1.97 in)

Centring Collar Diameter: 130 mm (5.12 in)

Mounting Holes Diameter: 11 mm (0.43 in)

Circle Diameter of Mounting Holes: 165 mm (6.50 in)

Material / Compliance: RoHS Compliant, Mercury Free, PVC Free

Country of Origin: Germany

Maximum Mechanical Speed4000 rpm

Continuous Stall Torque32.1 - 33.4 N.m

Maximum Radial Force1840 N at 3000 rpm, 2110 N at 2000 rpm, 2660 N at 1000 rpm

Nominal Torque10.8 - 19 N.m

Continuous Stall Current21.3 A

PhaseThree phase

Shaft Diameter24 mm (0.94 in)

Motor Flange Size140 mm (5.51 in)

Centring Collar Depth3.5 mm (0.14 in)

Number of Mounting Holes4

Weight26 kg (57.32 lb)

Environmental DisclosureENVPEP111049EN
