AC Servo Motor Lexium 32 32.1 N m 3000 rpm IP65 382.5 mm Length
Schneider Electric

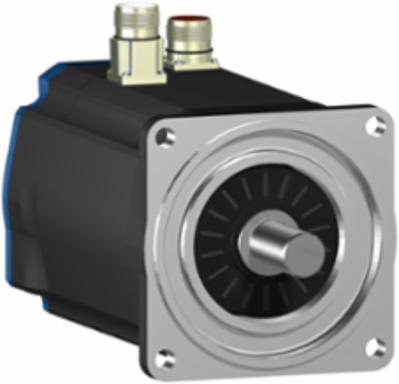

Schneider Electric BSH1404P21A1P AC Servo Motor Lexium 32 32.1 N m 3000 rpm IP65 382.5 mm Length

  • MPN: BSH1404P21A1P
  • PPN: SCH-BSH1404P21A1P

CAD

$3740.75

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Designed for advanced automation applications, the AC Servo Motor from Schneider Electric offers exceptional performance with a torque rating of 32.1 N m and an impressive maximum speed of 3000 rpm. This motor, part of the Lexium 32 series, is engineered for reliability and efficiency, making it an excellent choice for dynamic motion control tasks. Additionally, its IP65 rating ensures robust protection against dust and water, allowing for operation in demanding environments. With a length of 382.5 mm, this servo motor integrates seamlessly into various automation systems, enhancing overall productivity and control in motion applications.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, Germany, France

Physical Attributes

Motor Flange Size
140 mm
Shaft Length50 mm

Complementary Attributes

Maximum Current Irms
72 A LXM32.D72N4 LXM05AD57N4, LXM05BD57N4, LXM05CD57N4, 95.6 A
Line Rated Current
11.0 A
Maximum Axial Force Fa
0.2 x Fr
Maximum Operational Altitude
3000.0 m
Maximum Radial Force Fr
1840 N 3000 rpm2110 N 2000 rpm2660 N 1000 rpm
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Maximum Ambient Air Temperature For Operation60.0 °C
Maximum Mechanical Speed4000 rpm
Maximum Permanent Current95.6 A
Minimum Operational Altitude0.0 m

Important Information Attributes

Coefficient 1 1
-0.00576666666666 N.m/rpm, -0.00576666666666 N.m/rpm
Coefficient 1 4
-1.0776504E-23 N.m/rpm4, -1.0776504E-23 N.m/rpm4
Minimum Ambient Air Temperature For Operation
-20.0 °C, -20.0 °C
Nominal Torque
16.1 N.m full speed24.75 N.m half speed, 19 N.m LXM32.D72N4 24 A, 400 V, three phase, 19 N.m LXM32.D72N4 24 A, 480 V, three phase, 10.8 N.m LXM05AD57N4, 380...480 V, three phase, 10.8 N.m LXM05BD57N4, 380...480 V, three phase, 10.8 N.m LXM05CD57N4, 380...480 V, three phase
Carbon Footprint Of The Distribution Phase [A4]
2.3868181818, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.1641181818, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
5 382 kg CO2 eq., 5382.0617901829
Local Publishable Date
2026-01-12
Stocking Flag
Y
Device Type
Motion - drive & motor
Traceability
Yes
Average Life Duration
15 year(s)
Weee Product Category
5
Eoli Availability Display
No need of specific recycling operations
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1905
China Rohs In Scope
Yes
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Centring Collar Diameter
130 mm
Coefficient 1 3
2.1479766618E-20 N.m/rpm3
Coefficient 1 6
0 N.m/rpm6
Continuous Stall Current
21.3 A
Derating Altitude Start
1000.0 m
Derating Temperature Start
40.0 °C
Electrical Connection
straight connectors
Holding Brake
without
Maximum Operational Altitude
3000.0 m
Motor Figures
400.0 V
Mounting Holes Diameter
11 mm
Network Number Of Phases
3
Number Of Motor Stacks
4
Peak Nominal Torque
131.9 N.m
Product Availability
Non-Stock - Not normally stocked in distribution facility
Returnability
No
Second Shaft
without second shaft end
Shaft End
untapped
Software Version
EIME v5.8.1
Stator Electrical Time Constant
13.93 ms 20 °C
Stator Resistance
0.28 Ohm 20 °C
Switching Frequency
8 kHz
Temperature Magnet Hot
100 °C
Torque Constant
1.57 N.m/A 120 °C
Type Of Cooling
natural convection
Pep Code
ENVPEP111049EN
Pep Verification Date
2020-08-01
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
Coordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
Functional-unit Unit
unit
Energy Consumption On Product Lifetime In Kwh
10985.04
Energy Model - Installation [A5]
Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]
Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
[Us] Rated Supply Voltage
480 V
Maximum [In] Rated Current
11.0 A
Package Weight(Lbs)
18.5 kg
Warranty (In Months)
18
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
56.775
Water Pollution (M3) End Of Life [C1-c4]
178
Coefficient 1 2-1.9464694685851E-17 N.m/rpm², -1.9464694685851E-17 N.m/rpm²
Continuous Stall Torque33.4 N.m LXM32.D72N4 24 A, 400 V, three phase, 33.4 N.m LXM32.D72N4 24 A, 480 V, three phase, 32.1 N.m LXM05AD57N4, 380...480 V, three phase, 32.1 N.m LXM05BD57N4, 380...480 V, three phase, 32.1 N.m LXM05CD57N4, 380...480 V, three phase
Nominal Speed3000 rpm, 2500 rpm LXM32.D72N4 24 A, 400 V, three phase, 2500 rpm LXM32.D72N4 24 A, 480 V, three phase, 3000 rpm LXM05AD57N4, 380...480 V, three phase, 3000 rpm LXM05BD57N4, 380...480 V, three phase, 3000 rpm LXM05CD57N4, 380...480 V, three phase
Peak Stall Torque103.6 N.m LXM32.D72N4 24 A, 400 V, three phase, 103.6 N.m LXM32.D72N4 24 A, 480 V, three phase, 63.09 N.m LXM05AD57N4, 380...480 V, three phase, 63.09 N.m LXM05BD57N4, 380...480 V, three phase, 63.09 N.m LXM05CD57N4, 380...480 V, three phase
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 1.7432727273
Carbon Footprint Of The Manufacturing Phase [A1 To A3]81 kg CO2 eq., 80.9909090909
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes165 mm
Coefficient 1 52.487E-27 N.m/rpm5
Continuous Power4.33 W
Derating Altitude Scale80.0 m
Derating Temperature Scale80.0 °C
Device Short NameBSH
Feedback Typesingle turn SinCos Hiperface
Inertia0.0 kg.cm² of brake23.7 kg.cm² of motor
Minimum Operational Altitude0.0 m
Motor Voltage Drop Coefficient1
Mounting Supportinternational standard flange
Number Of Motor Poles5.0
Number Of Mounting Holes4
Phasethree phase
Product Or Component Typeservo motor
Rotor Inertia23.7 kg.cm²
Shaft Diameter24 mm
Sizing ReferenceBSH1404P
Speed Feedback Resolution131072 points/turn
Stator Inductance2.035 mH 20 °C
Sustainable PackagingNo
Temperature Copper Hot120 °C
Temperature Magnet Rt20 °C
Total Lifecycle Carbon Footprint5 467 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Germany
Energy Model - Use [B6]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Length Total382.5 mm
Accuracy Error [Angular]1.4 °
Nbr. Of Units In Pkg.1
Take-backNo
Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]33.75
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]56.775
Customs Code8501524000

Environment Attributes Main

Product Compatibility
LXM05AD57N4 380...480 V three phase, LXM05BD57N4 380...480 V three phase, LXM05CD57N4 380...480 V three phaseLXM32.D72N4 400 V three phase, LXM32.D72N4 480 V three phase
Recycled Metal Content At Cr Level
0 %
Mercury Free
Yes
Environmental Disclosure
ENVPEP111049EN
Ip Degree Of Protection
IP65 standardIP67 with IP67 kit
Packaging Without Single Use Plastic
No
Pep Code
ENVPEP111049EN
Pcr Version
PCR-ed3-EN-2015 04 02
Take BackNo
China Rohs RegulationX
Carbon Footprint5467.3469083647
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2020-08-01
Type Of Verification For The PepIndependent internal review

General Attributes

Phase
three phase
Product Or Component Typeservo motor

ETIM

ETIM 8
EC001851
ETIM 9EC001851

Output Attributes

Nominal Output Power
5000 W LXM32.D72N4 24 A, 400 V, three phase, 5000 W LXM32.D72N4 24 A, 480 V, three phase, 3400 W LXM05AD57N4, 380...480 V, three phase, 3400 W LXM05BD57N4, 380...480 V, three phase, 3400 W LXM05CD57N4, 380...480 V, three phase
Output Current 3s Peak95.6 A

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
