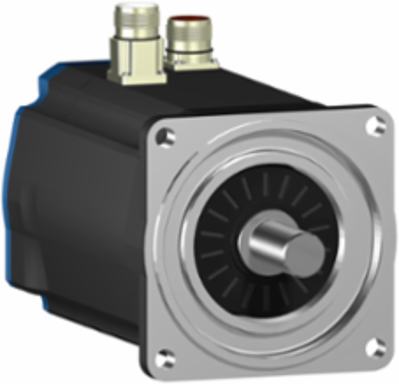

Schneider Electric BSH1402T32F1P AC Servo Motor, 14.4 N.m, 3000 rpm, Keyed Shaft, IP65
- MPN: BSH1402T32F1P
- PPN: SCH-BSH1402T32F1P
CAD
$4762.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for exceptional performance in a variety of automation applications, this AC servo motor from Schneider Electric delivers a robust torque of 14.4 N.m and operates at a high speed of 3000 rpm. Featuring a keyed shaft design, it ensures secure and reliable connections during operation, making it ideal for intricate motion control tasks. With an IP65 rating, this motor is well-protected against dust and water, allowing it to function effectively in challenging environments. This combination of power, precision, and durability makes it a vital component for any advanced automation system.
Documentation & Downloads
Specifications
Additional
- Peak Stall Torque
- 59.3 N.m
- Nominal Torque
- 12.3 N.m
- Maximum Mechanical Speed
- 4000 rpm
- Maximum Current Irms
- 75.2 A
- Phase
- Three phase
- Back EMF Constant
- 101 V/krpm
- Maximum Radial Force
- 1680 N at 3000 rpm
- Length
- 310.5 mm (12.22 in)
- Shaft Length
- 50 mm (1.97 in)
- Motor Flange Size
- 140 mm (5.51 in)
- Number of Motor Poles
- 10
- Electrical Connection
- Straight connectors
- Rotor Inertia
- 14.48 kg.cm²
- Stator Inductance
- 7.4 mH 20 °C
- Holding Brake
- With
- Cooling Type
- Natural convection
- Product Compatibility
- LXM05AD42M3X, LXM05BD42M3X, LXM05CD42M3X
- Compliance
- RoHS Compliant, Mercury free, PVC free
Continuous Stall Torque19.5 N.m
Nominal Speed3000 rpm
Continuous Stall Current22.5 A
Supply Voltage480 V
Torque Constant1.47 N.m/A
Switching Frequency8 kHz
Holding Torque23 N.m holding brake
Shaft Diameter24 mm (0.94 in)
Key Width40 mm (1.57 in)
Number of Motor Stacks2
Mounting SupportInternational standard flange
Feedback TypeMultiturn SinCos Hiperface
Stator Resistance0.6 Ohm 20 °C
Stator Electrical Time Constant12.1 ms 20 °C
IP RatingIP65 standard, IP67 with kit
Brake Pull-In Power24 W
Country of OriginGermany (DE)
