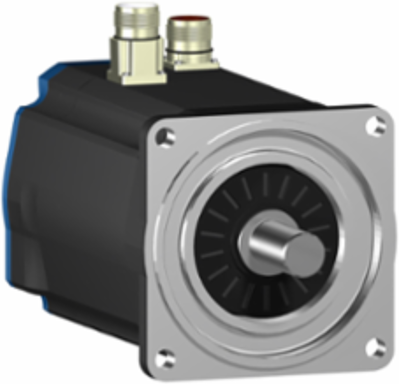

Schneider Electric BSH1404P11F1P Lexium 32 Servo Motor 140mm, 32.1N.m, 3000 rpm, IP50
- MPN: BSH1404P11F1P
- PPN: SCH-BSH1404P11F1P
CAD
$4625.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for high-performance applications, the Lexium 32 Servo Motor from Schneider Electric excels in motion control with a robust torque output of 32.1 N.m. Operating at a maximum speed of 3000 rpm, this versatile 140mm servo motor is ideal for a variety of automation projects. Its IP50 rating offers reliable protection against dust, ensuring dependable performance in industrial environments. Engineered for precision and efficiency, this motor is an excellent choice for enhancing the productivity of your automation systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France
Physical Attributes
- Key Width
- 40 mm
- Shaft Length
- 50 mm
Motor Flange Size140 mm
Complementary Attributes
- Maximum Current Irms
- 72 A LXM32.D72N4 LXM05AD57N4, LXM05BD57N4, LXM05CD57N4, 95.6 A
- Line Rated Current
- 11.0 A
- Maximum Axial Force Fa
- 0.2 x Fr
- Maximum Operational Altitude
- 3000.0 m
- Maximum Radial Force Fr
- 1840 N 3000 rpm2110 N 2000 rpm2660 N 1000 rpm
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Maximum Ambient Air Temperature For Operation60.0 °C
Maximum Mechanical Speed4000 rpm
Maximum Permanent Current95.6 A
Minimum Operational Altitude0.0 m
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Coefficient 1 1
- -0.00576666666666 N.m/rpm, -0.00576666666666 N.m/rpm
- Coefficient 1 4
- -1.0776504E-23 N.m/rpm4, -1.0776504E-23 N.m/rpm4
- Minimum Ambient Air Temperature For Operation
- -20.0 °C, -20.0 °C
- Nominal Torque
- 16.1 N.m full speed24.75 N.m half speed, 19 N.m LXM32.D72N4 24 A, 400 V, three phase, 19 N.m LXM32.D72N4 24 A, 480 V, three phase, 10.8 N.m LXM05AD57N4, 380...480 V, three phase, 10.8 N.m LXM05BD57N4, 380...480 V, three phase, 10.8 N.m LXM05CD57N4, 380...480 V, three phase
- Carbon Footprint Of The Distribution Phase [A4]
- 2.6577542998, 3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1827478133, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 5 382 kg CO2 eq., 5382.0617901829
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1905
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Centring Collar Diameter
- 130 mm
- Coefficient 1 3
- 2.1479766618E-20 N.m/rpm3
- Coefficient 1 6
- 0 N.m/rpm6
- Continuous Stall Current
- 21.3 A
- Derating Altitude Start
- 1000.0 m
- Derating Temperature Start
- 40.0 °C
- Electrical Connection
- straight connectors
- Holding Brake
- with
- Inertia
- 5.5 kg.cm² of brake23.7 kg.cm² of motor
- Minimum Operational Altitude
- 0.0 m
- Motor Voltage Drop Coefficient
- 1
- Mounting Support
- international standard flange
- Number Of Motor Poles
- 5.0
- Number Of Mounting Holes
- 4
- Phase
- three phase
- Product Or Component Type
- servo motor
- Rotor Inertia
- 29.2 kg.cm²
- Shaft Diameter
- 24 mm
- Sizing Reference
- BSH1404P
- Speed Feedback Resolution
- 131072 points/turn
- Stator Inductance
- 2.035 mH 20 °C
- Sustainable Packaging
- No
- Temperature Copper Hot
- 120 °C
- Temperature Magnet Rt
- 20 °C
- Total Lifecycle Carbon Footprint
- 5 477 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Germany
- Energy Model - Use [B6]
- Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Length Total
- 420.5 mm
- Accuracy Error [Angular]
- 1.4 °
- Maximum [In] Rated Current
- 11.0 A
- Package Weight(Lbs)
- 20.6 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 2-1.9464694685851E-17 N.m/rpm², -1.9464694685851E-17 N.m/rpm²
Continuous Stall Torque33.4 N.m LXM32.D72N4 24 A, 400 V, three phase, 33.4 N.m LXM32.D72N4 24 A, 480 V, three phase, 32.1 N.m LXM05AD57N4, 380...480 V, three phase, 32.1 N.m LXM05BD57N4, 380...480 V, three phase, 32.1 N.m LXM05CD57N4, 380...480 V, three phase
Nominal Speed3000 rpm, 2500 rpm LXM32.D72N4 24 A, 400 V, three phase, 2500 rpm LXM32.D72N4 24 A, 480 V, three phase, 3000 rpm LXM05AD57N4, 380...480 V, three phase, 3000 rpm LXM05BD57N4, 380...480 V, three phase, 3000 rpm LXM05CD57N4, 380...480 V, three phase
Peak Stall Torque103.6 N.m LXM32.D72N4 24 A, 400 V, three phase, 103.6 N.m LXM32.D72N4 24 A, 480 V, three phase, 63.09 N.m LXM05AD57N4, 380...480 V, three phase, 63.09 N.m LXM05BD57N4, 380...480 V, three phase, 63.09 N.m LXM05CD57N4, 380...480 V, three phase
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 1.9411577396
Carbon Footprint Of The Manufacturing Phase [A1 To A3]90 kg CO2 eq., 90.1844717445
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id2
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes165 mm
Coefficient 1 52.487E-27 N.m/rpm5
Continuous Power4.33 W
Derating Altitude Scale80.0 m
Derating Temperature Scale80.0 °C
Device Short NameBSH
Feedback Typesingle turn SinCos Hiperface
Holding Torque36 N.m holding brake
Maximum Operational Altitude3000.0 m
Motor Figures400.0 V
Mounting Holes Diameter11 mm
Network Number Of Phases3
Number Of Motor Stacks4
Peak Nominal Torque131.9 N.m
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Second Shaftwithout second shaft end
Shaft Endkeyed
Software VersionEIME v5.8.1
Stator Electrical Time Constant13.93 ms 20 °C
Stator Resistance0.28 Ohm 20 °C
Switching Frequency8 kHz
Temperature Magnet Hot100 °C
Torque Constant1.57 N.m/A 120 °C
Type Of Coolingnatural convection
Pep CodeENVPEP111049EN
Pep Verification Date2020-08-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionCoordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh10985.04
Energy Model - Installation [A5]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
[Us] Rated Supply Voltage480 V
Brake Pull-in Power26 W
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501524000
Environment Attributes Main
- Product Compatibility
- LXM05AD57N4 380...480 V three phase, LXM05BD57N4 380...480 V three phase, LXM05CD57N4 380...480 V three phaseLXM32.D72N4 400 V three phase, LXM32.D72N4 480 V three phase
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP111049EN
- Ip Degree Of Protection
- IP50 standard
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP111049EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
Take BackNo
China Rohs RegulationX
Carbon Footprint5477.0279217799
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2020-08-01
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- three phase
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 5000 W LXM32.D72N4 24 A, 400 V, three phase, 5000 W LXM32.D72N4 24 A, 480 V, three phase, 3400 W LXM05AD57N4, 380...480 V, three phase, 3400 W LXM05BD57N4, 380...480 V, three phase, 3400 W LXM05CD57N4, 380...480 V, three phase
Output Current 3s Peak95.6 A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
