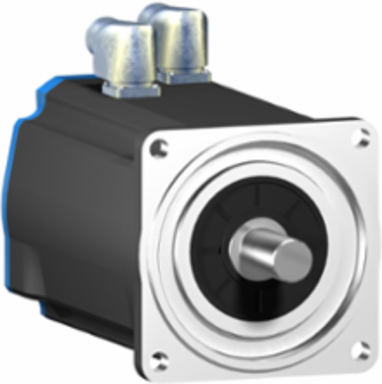

Schneider Electric BSH1404P11F2P Lexium 32 Servo Motor 32.1N.m 3000rpm 140mm with Brake IP50
- MPN: BSH1404P11F2P
- PPN: SCH-BSH1404P11F2P
CAD
$4682.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Lexium 32 Servo Motor from Schneider Electric stands out with its robust design and impressive performance capabilities. Boasting a torque of 32.1N.m and a maximum speed of 3000rpm, this motor is engineered for precision in automation and motion control applications. With an integrated brake and an IP50 rating, it is well-suited for environments where durability and reliability are essential. Its 140mm size allows for versatile integration into various systems, making it an excellent choice for those looking to enhance their automation processes.
Documentation & Downloads
Specifications
Additional
- Nominal Torque
- 19 N.m
- Nominal Output Power
- 3400 W, 5000 W
- Maximum Current Irms
- 72 A, 95.6 A
- Peak Stall Torque
- 63.09 N.m, 103.6 N.m
- Torque Constant
- 1.57 N.m/A
- Stator Resistance
- 0.28 Ohm
- Stator Electrical Time Constant
- 13.93 ms
- Maximum Axial Force
- 0.2 x Radial Force
- Torque
- 32.1 N.m
- Brake
- With holding brake
- Phase
- Three phase
- Motor Flange Size
- 140 mm (5.51 in)
- Shaft Diameter
- 24 mm (0.94 in)
- Key Width
- 40 mm (1.57 in)
- Centering Collar Depth
- 3.5 mm (0.14 in)
- Mounting Holes Diameter
- 11 mm (0.43 in)
- Net Weight
- 27.8 kg (61.29 lb)
- Cooling Type
- Natural convection
- Number of Motor Stacks
- 4
- Rotor Inertia
- 29.2 kg.cm²
- Environmental Compliance
- Reach SVHC, EU RoHS Exemption, Pvc Free, Mercury Free, Prop 65 not specified
- Mounting Support
- International standard flange
- Speed Feedback Resolution
- 131072 points/turn
- Sustainable Offer Status
- Green Premium product
Nominal Speed2500 rpm, 3000 rpm
Maximum Mechanical Speed4000 rpm
Continuous Stall Torque32.1 N.m, 33.4 N.m
Continuous Stall Current21.3 A
Back Emf Constant104 V/krpm
Stator Inductance3.9 mH
Maximum Radial Force1840 N at 3000 rpm, 2110 N at 2000 rpm, 2660 N at 1000 rpm
Switching Frequency8 kHz
Holding Torque36 N.m
Supply Voltage380...480 V, 400 V, 480 V
Size140 mm
Length420.5 mm (16.56 in)
Shaft Length50 mm (1.97 in)
Centering Collar Diameter130 mm (5.12 in)
Number of Mounting Holes4
Circle Diameter of Mounting Holes165 mm (6.5 in)
MaterialNot specified
Feedback TypeSingle turn SinCos Hiperface
Number of Motor Poles10
Holding BrakeWith
IP RatingIP50
Electrical ConnectionRotatable right-angled connectors
Product Or Component TypeServo motor
