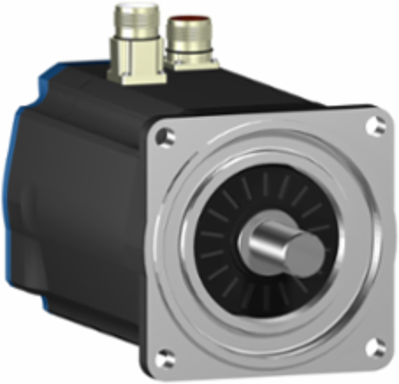

Servo Motor Lexium 32 32.1N.m 3000rpm 140mm with Brake IP50
Schneider Electric

Schneider Electric BSH1404P01F1P Servo Motor Lexium 32 32.1N.m 3000rpm 140mm with Brake IP50

  • MPN: BSH1404P01F1P
  • PPN: SCH-BSH1404P01F1P

CAD

$4538.40

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Servo Motor Lexium 32 32.1N.m 3000rpm 140mm with Brake IP50

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, Germany, France

Physical Attributes

Motor Flange Size
140 mm
Shaft Length50 mm

Complementary Attributes

Maximum Current Irms
72 A LXM32.D72N4, 95.6 A LXM05AD57N4, 95.6 A LXM05BD57N4, 95.6 A LXM05CD57N4, 95.6 A
Minimum Ambient Air Temperature For Operation
-20.0 °C, -20.0 °C
Maximum Ambient Air Temperature For Operation
60.0 °C
Maximum Mechanical Speed
4000 rpm
Maximum Permanent Current
95.6 A
Maximum Radial Force Fr1840 N 3000 rpm, 2110 N 2000 rpm, 2660 N 1000 rpm
Line Rated Current11.0 A
Maximum Axial Force Fa0.2 x Fr
Maximum Operational Altitude3000.0 m
Minimum Operational Altitude0.0 m

Important Information Attributes

Persona Type Ids
EU, OM, OM8
Coefficient 1 1
-0.00576666666666 N.m/rpm, -0.00576666666666 N.m/rpm
Coefficient 1 4
-1.0776504E-23 N.m/rpm4, -1.0776504E-23 N.m/rpm4
Inertia
5.5 kg.cm² of brake, 23.7 kg.cm² of motor
Nominal Speed
3000 rpm, 2500 rpm LXM32.D72N4 24 A, 400 V, three phase, 2500 rpm LXM32.D72N4 24 A, 480 V, three phase, 3000 rpm LXM05AD57N4, 380...480 V, three phase, 3000 rpm LXM05BD57N4, 380...480 V, three phase, 3000 rpm LXM05CD57N4, 380...480 V, three phase
Peak Stall Torque
103.6 N.m LXM32.D72N4 24 A, 400 V, three phase, 103.6 N.m LXM32.D72N4 24 A, 480 V, three phase, 63.09 N.m LXM05AD57N4, 380...480 V, three phase, 63.09 N.m LXM05BD57N4, 380...480 V, three phase, 63.09 N.m LXM05CD57N4, 380...480 V, three phase
Carbon Footprint Of The End-of-life Phase [C1 To C4]
2 kg CO2 eq., 1.9411577396
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
90 kg CO2 eq., 90.1844717445
Local Data Status
Publishable
Return Indicator
N
Stock Policy
2
Serviceability
Yes
Field Service Division
IDIBS
Weee Scope
In
Scope Perimeter
At least in Europe
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
China Rohs Label
5
Without Single Use Plastic
No
Tier Id
2
Function Option Id
ADVANCED
Market Segmentation Id
INDUSTRIAL
Product Kit Identifier
N
Circle Diameter Of The Mounting Holes
165 mm
Coefficient 1 5
2.487E-27 N.m/rpm5
Continuous Power
4.33 W
Derating Altitude Scale
80.0 m
Derating Temperature Scale
80.0 °C
Device Short Name
BSH
Feedback Type
single turn SinCos Hiperface
Holding Torque
36 N.m holding brake
Minimum Operational Altitude
0.0 m
Motor Voltage Drop Coefficient
1
Mounting Support
international standard flange
Number Of Motor Poles
5.0
Number Of Mounting Holes
4
Phase
three phase
Product Or Component Type
servo motor
Rotor Inertia
29.2 kg.cm²
Shaft Diameter
24 mm
Sizing Reference
BSH1404P
Speed Feedback Resolution
131072 points/turn
Stator Inductance
2.035 mH 20 °C
Sustainable Packaging
No
Temperature Copper Hot
120 °C
Temperature Magnet Rt
20 °C
Total Lifecycle Carbon Footprint
5 477 kg CO2 eq.
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version
2016-11
Pcr Version
PCR-ed3-EN-2015 04 02
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime, In Y
10
Energy Model - Manufacturing [A1-a3]
Energy model used: Germany
Energy Model - Use [B6]
Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Length Total
420.5 mm
Accuracy Error [Angular]
1.4 °
Maximum [In] Rated Current
11.0 A
Package Weight(Lbs)
20.6 kg
Warranty (In Months)
18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 2-1.9464694685851E-17 N.m/rpm², -1.9464694685851E-17 N.m/rpm²
Continuous Stall Torque33.4 N.m LXM32.D72N4 24 A, 400 V, three phase, 33.4 N.m LXM32.D72N4 24 A, 480 V, three phase, 32.1 N.m LXM05AD57N4, 380...480 V, three phase, 32.1 N.m LXM05BD57N4, 380...480 V, three phase, 32.1 N.m LXM05CD57N4, 380...480 V, three phase
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Nominal Torque16.1 N.m full speed, 24.75 N.m half speed, 19 N.m LXM32.D72N4 24 A, 400 V, three phase, 19 N.m LXM32.D72N4 24 A, 480 V, three phase, 10.8 N.m LXM05AD57N4, 380...480 V, three phase, 10.8 N.m LXM05BD57N4, 380...480 V, three phase, 10.8 N.m LXM05CD57N4, 380...480 V, three phase
Carbon Footprint Of The Distribution Phase [A4]2.6577542998, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1827478133, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]5 382 kg CO2 eq., 5382.0617901829
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1905
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter130 mm
Coefficient 1 32.1479766618E-20 N.m/rpm3
Coefficient 1 60 N.m/rpm6
Continuous Stall Current21.3 A
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionstraight connectors
Holding Brakewith
Maximum Operational Altitude3000.0 m
Motor Figures400.0 V
Mounting Holes Diameter11 mm
Network Number Of Phases3
Number Of Motor Stacks4
Peak Nominal Torque131.9 N.m
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Second Shaftwithout second shaft end
Shaft Enduntapped
Software VersionEIME v5.8.1
Stator Electrical Time Constant13.93 ms 20 °C
Stator Resistance0.28 Ohm 20 °C
Switching Frequency8 kHz
Temperature Magnet Hot100 °C
Torque Constant1.57 N.m/A 120 °C
Type Of Coolingnatural convection
Pep CodeENVPEP111049EN
Pep Verification Date2020-08-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionCoordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh10985.04
Energy Model - Installation [A5]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
[Us] Rated Supply Voltage480 V
Brake Pull-in Power26 W
Nbr. Of Units In Pkg.1
Take-backNo

Environment Attributes Main

Product Compatibility
LXM05AD57N4 380...480 V three phase, LXM05BD57N4 380...480 V three phase, LXM05CD57N4 380...480 V three phase, LXM32.D72N4 400 V three phase, LXM32.D72N4 480 V three phase
Recycled Metal Content At Cr Level
0 %
Mercury Free
Yes
Environmental Disclosure
ENVPEP111049EN
Ip Degree Of Protection
IP50 standard
Packaging Without Single Use Plastic
No
Pep Code
ENVPEP111049EN
Pcr Version
PCR-ed3-EN-2015 04 02
Take BackNo
China Rohs RegulationX
Carbon Footprint5477.0279217799
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2020-08-01
Type Of Verification For The PepIndependent internal review

General Attributes

Phase
three phase
Product Or Component Typeservo motor

ETIM

ETIM 8
EC001851
ETIM 9EC001851

Output Attributes

Nominal Output Power
5000 W LXM32.D72N4 24 A, 400 V, three phase, 5000 W LXM32.D72N4 24 A, 480 V, three phase, 3400 W LXM05AD57N4, 380...480 V, three phase, 3400 W LXM05BD57N4, 380...480 V, three phase, 3400 W LXM05CD57N4, 380...480 V, three phase
Output Current 3s Peak95.6 A

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
