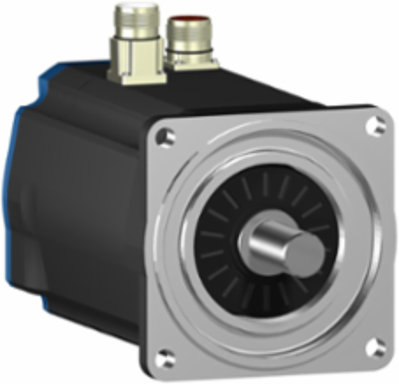

Schneider Electric BSH1404P01A1P Servo Motor Lexium 32 32.1N.m 3000rpm 140mm IP50

MPN: BSH1404P01A1P
PPN: SCH-BSH1404P01A1P

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$3530.26/ EA

Qty:

Loading add to cart quantity...

Description

Engineered for high-performance applications, the Schneider Electric BSH1404P01A1P Servo Motor is a robust solution in the realm of automation and control. With a powerful output of 32.1 N.m and a speed of 3000 rpm, this motor caters to a variety of motion control requirements, ensuring precise and reliable movement. The compact 140mm design and IP50 rating offer a balance of efficiency and protection, making it suitable for various industrial environments. This servo motor stands out for its ability to provide consistent performance, making it a vital component in modern automation systems.

Specifications

Peak Stall Torque: 103.6 N.m

Maximum Mechanical Speed: 4000 rpm

Nominal Torque: 19 N.m

Supply Voltage: 480 V

Continuous Stall Current: 21.3 A

Switching Frequency: 8 kHz

Speed Feedback Resolution: 131072 points/turn

Maximum Axial Force: 0.2 x Fr

Frame Size: 140 mm

Shaft Diameter: 0.94 in (24 mm)

Number Of Mounting Holes: 4

Circle Diameter Of The Mounting Holes: 6.50 in (165 mm)

Material: N/A

Stator Resistance: 0.28 Ohm at 20 °C

Rotor Inertia: 23.7 kg.cm²

IP Rating: IP50

Compliance: RoHS, Mercury free, PVC free, REACh

Nominal Output Power5000 W

Continuous Stall Torque33.4 N.m

Nominal Speed2500-3000 rpm

PhaseThree phase

Maximum Current Irms95.6 A

Torque Constant1.57 N.m/A

Maximum Radial Force1840 N at 3000 rpm

Length15.06 in (382.5 mm)

Motor Flange Size140 mm

Shaft Length1.97 in (50 mm)

Mounting Holes Diameter0.43 in (11 mm)

Weight26 kg (57.32 lb)

Type Of CoolingNatural convection

Stator Inductance3.9 mH at 20 °C

Feedback TypeSingle turn SinCos Hiperface

Mounting SupportInternational standard flange

Warranty18 months
