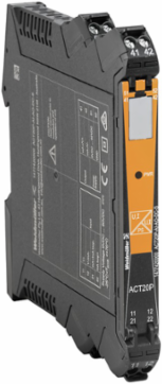

Weidmuller 1545720000 Signal Converter/Isolator, 4.693 Inch Height, 119.2 mm Height, 1 Input/1 Output, 24 V DC
- MPN: 1545720000
- PPN: WDM-1545720000
CAD
$778.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Signal converter/isolator, universal, Input : I/U universal, Output : I/U universal
Documentation & Downloads
Specifications
General Data

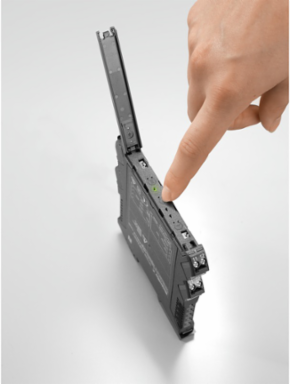

- Configuration

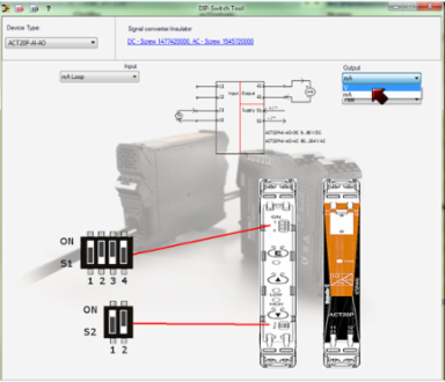

- DIP switch, Keys and LED display, with reference voltage/current sources
- Linearity
- < ± 0.1 % of signal range, Typ. ± 0.05 % of signal range
- Power consumption, typ.
- 3 W
- Step response time
- 350 ms
- Voltage supply
- 90…264 V AC, 47 to 63 Hz
Galvanic isolation3-way isolator, between input ⁄ output ⁄ supply
Long-term drift0.1 % / 10.000 h
RailTS 35
Temperature coefficient< 0.05 % / °C
Approvals
- Approvals
- EAC
ROHSConform

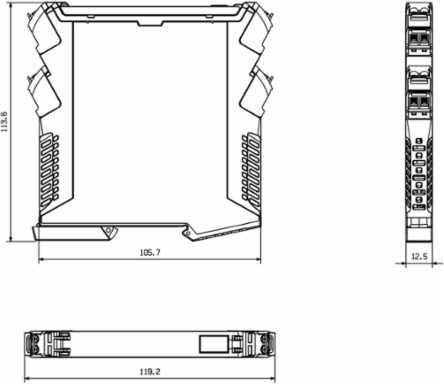

Dimensions And Weights
- Width
- 12.5 mm
- Height
- 119.2 mm
- Depth
- 113.7 mm
- Weight
- 80 g
Width (inches)0.492 inch
Height (inches)4.693 inch
Depth (inches)4.476 inch
Net weight80 g

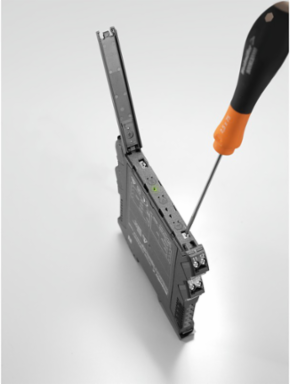

Connection Data
- Type of connection
- Screw connection
- Tightening torque, max.
- 0.6 Nm
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 26
Tightening torque, min.0.4 Nm
Clamping range, rated connection1.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 12

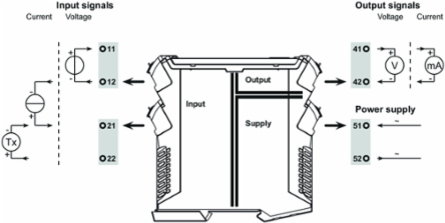

Input
- Number of inputs
- 1
- Input voltage
- configurable, 0-11 V (min. measurement range 2 V)
- Input current
- configurable, 0-22 mA (min. measurement range 4 mA)
- Resolution
- 3.5 µA / 1.76 mV per bit
Sensor supply24 V DC
Input resistance, voltage≥ 1 MΩ
Input resistance, current100 Ω
Classifications
- ETIM 6.0
- EC002653
- eClass 9.0
- 27-21-01-20
- eClass 10.0
- 27-21-01-20
ETIM 7.0EC002653
eClass 9.127-21-01-90
Output
- Number of outputs
- 1
- Output current
- Adjustable, 0...22 mA, Output range, min, 4 mA
- load impedance current
- ≤ 1kΩ
Output voltage, noteAdjustable, 0...11 V, Output range, min, 2 V
load impedance voltage≥ 500 kΩ
Offset voltage≤ 20 mV
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- EMC standards
- IEC 61326-1
- Impulse withstand voltage
- 4 kV (1.2/50 µs)
- Pollution severity
- 2
Galvanic isolation3-way isolator, between input ⁄ output ⁄ supply
Insulation voltage2 kV inputs / outputs
Surge voltage categoryIII
Temperatures
- Humidity
- 10…90 %, no condensation
- Operating temperature, min.
- -20 °C
- Storage temperature, min.
- -25 °C
- Storage temperature
- -25 °C...70 °C
Operating temperature, max.60 °C
Storage temperature, max.70 °C
Operating temperature-20 °C...60 °C
