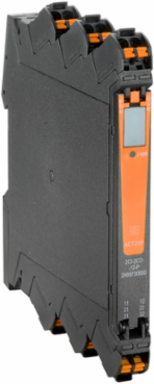

Weidmuller 2489730000 Dual Channel Signal Converter/Isolator 4-20 mA, 20-30 V DC, 12.5 mm Width
- MPN: 2489730000
- PPN: WDM-2489730000
CAD
$518.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Signal converter/isolator, dual channel, Input : 2 x 4-20 mA, Output : 2 x 4-20 mA
Documentation & Downloads
Specifications
General Data
| Accuracy | < 0.1 % of end value |
|---|---|
| Current consumption | ≤60 mA (24V power supply, 20mA output) |
| Rail | TS 35 |
| Temperature coefficient | 80 ppm/K |
| Configuration | none |
|---|---|
| Galvanic isolation | 3-way isolator, between input ⁄ output ⁄ supply |
| Step response time | ≤ 0,5 ms |
| Voltage supply | 20…30 V DC |
Approvals
| ROHS | Conform |
|---|

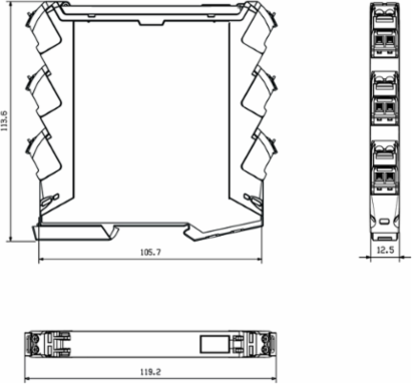

Dimensions And Weights
| Width | 12.5 mm |
|---|---|
| Height | 127.1 mm |
| Depth | 113.7 mm |
| Net weight | 130 g |
| Width (inches) | 0.492 inch |
|---|---|
| Height (inches) | 5.004 inch |
| Depth (inches) | 4.476 inch |
Connection Data

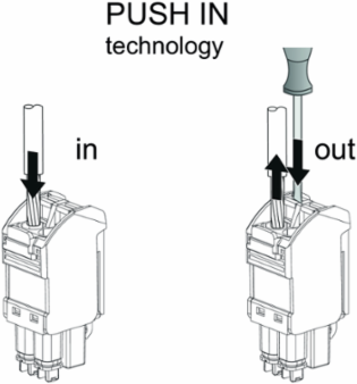

| Type of connection | PUSH IN |
|---|---|
| Wire connection cross section AWG, max. | AWG 14 |
| Wire cross-section, solid, max. | 2.5 mm² |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
|---|---|
| Wire cross-section, solid, min. | 0.2 mm² |
| Wire connection cross-section, finely stranded, min. | 0.2 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.2 mm² |
Input
| Number of inputs | 2 |
|---|---|
| Input signal | HART signal® bidirectional |
| Input current | 0...20 mA, 4…20mA |
| Sensor supply | > 17 V DC at 20 mA, max 30 V @ open circuit, max 50 mA @ short-circuit |
|---|---|
| Input voltage | ≤ 28 V DC |
| Voltage drop | ≤ 1 V |
Classifications
| ETIM 6.0 | EC002653 |
|---|---|
| eClass 9.0 | 27-21-01-20 |
| eClass 10.0 | 27-21-01-20 |
| ETIM 7.0 | EC002653 |
|---|---|
| eClass 9.1 | 27-21-01-90 |
Output
| Number of outputs | 2 |
|---|---|
| load impedance current | < 300 Ω, per channel |
| Output current | 0...20 mA, 4...20 mA, HART® digital signal |
|---|
Product Information

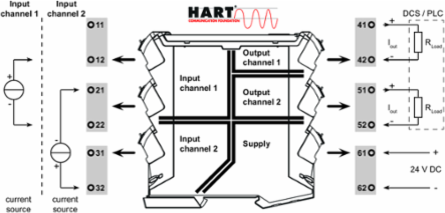

| Product information | The dual-channel, non-adjustable DC isolating amplifier ACT20P-2CI-2CO isolates analogue standard current source signals. An analogue input current signal is linearly converted into an analogue output current signal and is galvanically isolated. The power supply is galvanically isolated from the input and output (5-way isolation). Properties HART-compatible for 0.5 - 2.5 kHz The active or passive mA signal inputs are fully galvanically isolated. Operating status display on a front panel LED Galvanic 5-way isolation between input, output and supply. |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| EMC standards | EN 61010-1:2011, UL 61010-1, EN 61326-1 |
|---|---|
| Impulse withstand voltage | 4 kV (1.2/50 µs) |
| Pollution severity | 2 |
| Galvanic isolation | 3-way isolator, between input ⁄ output ⁄ supply |
|---|---|
| Insulation voltage | 2 kV inputs / outputs / power supply |
| Surge voltage category | III |
Temperatures
| Humidity | 5...95 %, no condensation |
|---|---|
| Operating temperature, min. | -20 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -20 °C...60 °C |
