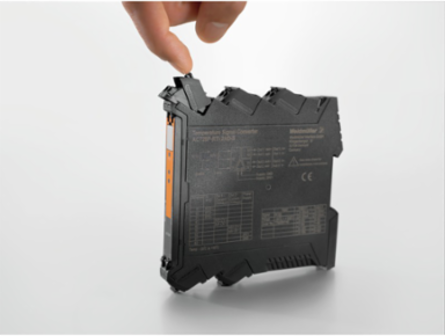

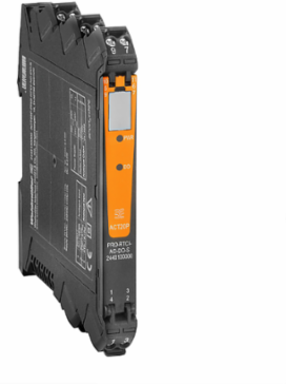

Weidmuller 7760054115 Signal Distributor, 1 Input, 2 Outputs, Galvanic Isolation, 0-20 mA
- MPN: 7760054115
- PPN: WDM-7760054115
CAD
$414.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

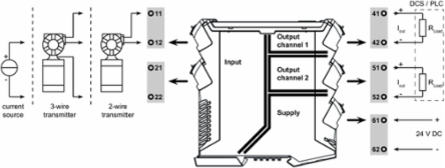

Signal distributor, Input : 0(4)-20 mA, Output : 2 x 4-20 mA
Documentation & Downloads
Specifications
Additional
- Input Signal Range
- 0...20 mA, 4...20 mA
- Number of Inputs
- 1
- Operating Voltage
- 20-30 V DC
- Step Response Time
- 0.5 ms
- Power Consumption
- 1.8 W
- Temperature Range Operating
- -20 C to 60 C

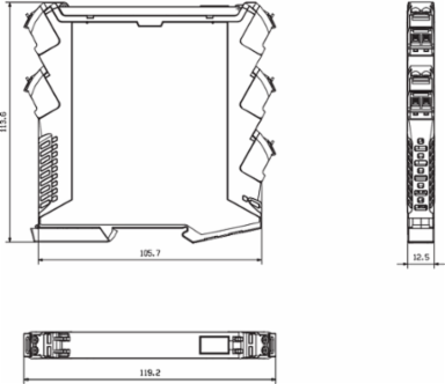

- Dimensions (H x W x D)
- 117.2 mm x 12.5 mm x 113.7 mm (4.614 in x 0.492 in x 4.476 in)
- Mounting Rail Type
- TS 35
- Wire Connection Cross Section
- AWG 26-12 (0.5-2.5 mm2)
- Impulse Withstand Voltage
- 4 kV (1.2/50 s)
- Pollution Severity
- 2
- Certifications
- CE, UL (cULus E469563, cULusEX E338066), RoHS Compliant
- Type of Connection
- Screw connection
- Humidity
- 5-95%, no condensation
- Country of Origin
- Not specified
Output Signal Range2 x 4-20 mA
Number of Outputs2
Accuracy<0.1% of end value
Load Impedance Current<300
Current Consumption60 mA (24V power supply, 20mA output)
Temperature Range Storage-40 C to 85 C
Weight157 g
Tightening Torque0.4-0.6 Nm
Insulation Voltage2 kV inputs/outputs/power supply
Surge Voltage CategoryIII
EMC StandardsEN 61326-1, EN 61000-6-2, EN 61000-6-4
HART Compatibility0.5-2.5 kHz
Accuracy Temperature Coefficient80 ppm/K
Sensor Supply>17 V DC at 20 mA, max 30 V open circuit, max 50 mA short circuit
