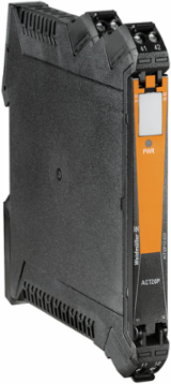

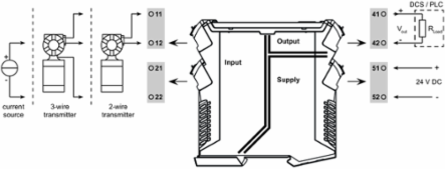

Weidmuller 1540010000 Signal Converter/Isolator, 0(4)-20 mA Input, 0-10 V Output, 4.476 Inch Depth
- MPN: 1540010000
- PPN: WDM-1540010000
CAD
$388.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Signal converter/isolator, Input : 0(4)-20 mA, Output : 0-10 V
Documentation & Downloads
Specifications
General Data
| Accuracy | ±0,1 % FSR max., 0,05 % FSR typ. |
|---|---|
| Current consumption | ≤60 mA (24V power supply, 20mA output) |
| Rail | TS 35 |
| Temperature coefficient | 80 ppm/K |
| Configuration | none |
|---|---|
| Galvanic isolation | 3-way isolator, between input ⁄ output ⁄ supply |
| Step response time | ≤ 0,5 ms |
| Voltage supply | 20…30 V DC |
Approvals
| Approvals | CULUS, EAC |
|---|---|
| UL File Number Search | E366074 |
| ROHS | Conform |
|---|

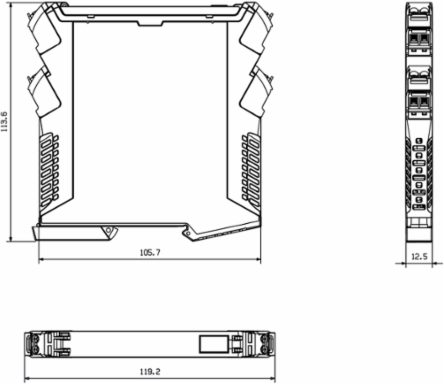

Dimensions And Weights
| Width | 12.5 mm |
|---|---|
| Height | 117.2 mm |
| Depth | 113.7 mm |
| Weight | 110 g |
| Width (inches) | 0.492 inch |
|---|---|
| Height (inches) | 4.614 inch |
| Depth (inches) | 4.476 inch |
| Net weight | 147 g |
Connection Data
| Type of connection | Screw connection |
|---|---|
| Tightening torque, max. | 0.6 Nm |
| Clamping range, min. | 0.5 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Tightening torque, min. | 0.4 Nm |
|---|---|
| Clamping range, rated connection | 0.6 mm² |
| Clamping range, max. | 2.5 mm² |
| Wire connection cross section AWG, max. | AWG 12 |
Input
| Number of inputs | 1 |
|---|---|
| Input signal | 2-/3-wire transmitter, Current source |
| Voltage drop | ≤ 1 V |
| Sensor supply | > 17 V DC at 20 mA |
|---|---|
| Input current | 0...20 mA, 4…20mA |
Classifications
| ETIM 6.0 | EC002653 |
|---|---|
| eClass 9.0 | 27-21-01-20 |
| eClass 10.0 | 27-21-01-20 |
| ETIM 7.0 | EC002653 |
|---|---|
| eClass 9.1 | 27-21-01-90 |
Output
| Number of outputs | 1 |
|---|---|
| load impedance voltage | ≥ 600 kΩ |
| Output voltage, note | 0…10 V (if input: 0…20 mA), 2…10 V (if input: 4…20 mA) |
|---|
Product Information
| Product information | The fixed DC repeater ACT20P-CI-VO isolates analogue standard current signals from a power source or from a 2- or 3-wire sensor. An analogue input current signal is converted linear and galvanic isolated into an analogue output voltage signal. The power supply is galvanically isolated from input and output (3-way isolation). Features The active or passive mA current signal inputs are completely electrically isolated. Front LED indicates operation status. 3-way galvanic isolation between input, output and power supply |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| EMC standards | EN 61326-1 |
|---|---|
| Impulse withstand voltage | 4 kV (1.2/50 µs) |
| Pollution severity | 2 |
| Galvanic isolation | 3-way isolator, between input ⁄ output ⁄ supply |
|---|---|
| Insulation voltage | 2 kV (Input /Output), 1 min, 50 Hz |
| Surge voltage category | III |
Temperatures
| Humidity | 5...95 %, no condensation |
|---|---|
| Operating temperature, min. | -20 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -20 °C...60 °C |
Ratings Iecex/Atex/Cul
| Certificate no. (cULus) | E366074 |
|---|
