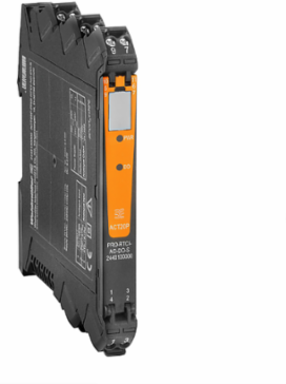

Weidmuller 7760054117 Dual Channel Signal Converter / Isolator, 4-20 mA Input/Output, 12.5 mm Width
- MPN: 7760054117
- PPN: WDM-7760054117
CAD
$517.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

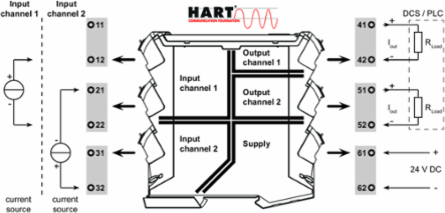

Signal converter/isolator, dual channel, Input : 2 x 4-20 mA, Output : 2 x 4-20 mA
Documentation & Downloads
Specifications
General Data
- Accuracy
- < 0.1 % of end value
- Current consumption
- ≤60 mA (24V power supply, 20mA output)
- Rail
- TS 35
- Temperature coefficient
- 80 ppm/K
Configurationnone
Galvanic isolation3-way isolator, between input ⁄ output ⁄ supply
Step response time≤ 0,5 ms
Voltage supply20…30 V DC
Approvals
- Approvals
- CE, CULUS, EAC
- UL File Number Search
- E366074
ROHSConform

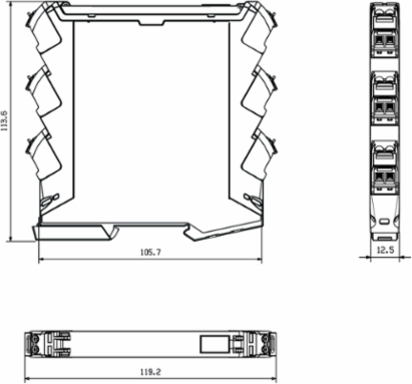

Dimensions And Weights
- Width
- 12.5 mm
- Height
- 117.2 mm
- Depth
- 113.7 mm
- Net weight
- 172 g
Width (inches)0.492 inch
Height (inches)4.614 inch
Depth (inches)4.476 inch
Connection Data
- Type of connection
- Screw connection
- Tightening torque, max.
- 0.6 Nm
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 26
Tightening torque, min.0.4 Nm
Clamping range, rated connection2.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 12
Input
- Number of inputs
- 2
- Input signal
- HART signal® bidirectional
- Input current
- 0...20 mA, 4…20mA
Sensor supply> 17 V DC at 20 mA, max 30 V @ open circuit, max 50 mA @ short-circuit
Input voltage≤ 28 V DC
Voltage drop≤ 1 V
Classifications
- ETIM 6.0
- EC002653
- eClass 9.0
- 27-21-01-20
- eClass 10.0
- 27-21-01-20
ETIM 7.0EC002653
eClass 9.127-21-01-20
Output
- Number of outputs
- 2
- load impedance current
- < 300 Ω, per channel
Output current0...20 mA, 4...20 mA, HART® digital signal
Product Information
- Product information
- The dual-channel, non-adjustable DC isolating amplifier ACT20P-2CI-2CO isolates analogue standard current source signals. An analogue input current signal is linearly converted into an analogue output current signal and is galvanically isolated. The power supply is galvanically isolated from the input and output (5-way isolation). Properties HART-compatible for 0.5 - 2.5 kHz The active or passive mA signal inputs are fully galvanically isolated. Operating status display on a front panel LED Galvanic 5-way isolation between input, output and supply.
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- EMC standards
- EN 61010-1:2011, UL 61010-1, EN 61326-1
- Impulse withstand voltage
- 4 kV (1.2/50 µs)
- Pollution severity
- 2
Galvanic isolation3-way isolator, between input ⁄ output ⁄ supply
Insulation voltage2 kV inputs / outputs / power supply
Surge voltage categoryIII
Temperatures
- Humidity
- 5...95 %, no condensation
- Operating temperature, min.
- -20 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
Operating temperature, max.60 °C
Storage temperature, max.85 °C
Operating temperature-20 °C...60 °C
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E366074
