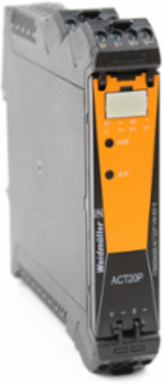

Weidmuller 7760054306 Signal Converter/Insulator, AC/DC Input, 4-20 mA Output, 4.5 Inch Depth
- MPN: 7760054306
- PPN: WDM-7760054306
CAD
$344.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Signal converter/insulator, Input: AC/DC voltage, Output: 4 - 20 mA
Documentation & Downloads
Specifications
General Data
| Accuracy | 0.5 % FSR |
|---|---|
| Galvanic isolation | 3-way isolator, between input ⁄ output ⁄ supply |
| Rail | TS 35 |
| Temperature coefficient | ≤ 200 ppm/K |

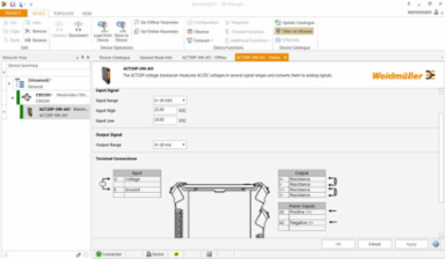

| Configuration | With FDT/DTM software |
|---|---|
| Power consumption | ≤ 100 mA @ 24 VDC, ≤ 120mA @ 24V AC |
| Step response time | < 300 ms |
| Voltage supply | 24…240 VUC (±10%) |
Approvals
| Approvals | CE, EAC |
|---|
| ROHS | Conform |
|---|

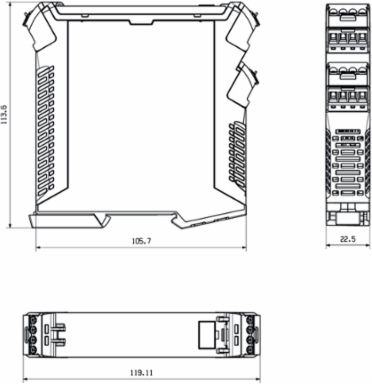

Dimensions And Weights
| Width | 22.5 mm |
|---|---|
| Height | 119.2 mm |
| Depth | 114.3 mm |
| Net weight | 110 g |
| Width (inches) | 0.886 inch |
|---|---|
| Height (inches) | 4.693 inch |
| Depth (inches) | 4.5 inch |
Connection Data
| Type of connection | Screw connection |
|---|---|
| Tightening torque, max. | 0.6 Nm |
| Clamping range, min. | 0.5 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Tightening torque, min. | 0.4 Nm |
|---|---|
| Clamping range, rated connection | 1.5 mm² |
| Clamping range, max. | 2.5 mm² |
| Wire connection cross section AWG, max. | AWG 12 |

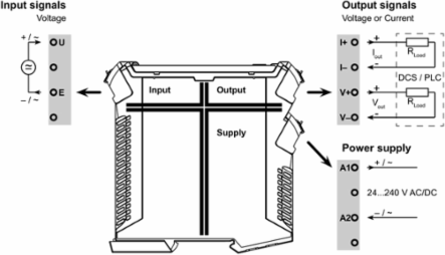

Input
| Number of inputs | 1 |
|---|---|
| Input voltage | 0…30 V DC, 0…60 V DC, 0…150 V DC, 0…300 V DC, 0…440 V DC, 0…660 V DC, 0…60 V AC, 0…144 V AC, 0…300 V AC, 0…440 V AC |
| Input signal | UDC, UACEffective value (sinusoidal only) 40-60 Hz |
|---|---|
| Input resistance | 1 MΩ±5% |
Classifications
| ETIM 6.0 | EC002653 |
|---|---|
| eClass 9.0 | 27-21-01-20 |
| eClass 10.0 | 27-21-01-20 |
| ETIM 7.0 | EC002653 |
|---|---|
| eClass 9.1 | 27-21-01-20 |
Output
| Number of outputs | 1 |
|---|---|
| Output current | 0(4)...20 mA |
| load impedance current | ≤ 500 Ω |
| Output voltage, note | 0...10 V |
|---|---|
| load impedance voltage | ≥ 10 kΩ |
Product Information
| Product information | The analogue voltage converter ACT20P-VM-AO-S measures DC or AC voltages. The analogue input signal is linearly converted into an analogue output signal (current or voltage) and galvanically isolated. Features Configuration and monitoring are performed via FDT/DTM-Software „WI-Manager“. Signal and alarm triggering upon exceeding limit values or reverse polarity DC input voltage Front LED indicates operation status 3-way galvanic isolation between input, output and power supply. |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| EMC standards | IEC 61000-6 /-2, IEC 61000-6-4, IEC 61326-1 |
|---|---|
| Impulse withstand voltage | 4 kV (1.2 / 50 μs) input - output/ supply, 6 kV (input - output), 1.2/50 µs |
| Pollution severity | 2 |
| Surge voltage category | III |
| Galvanic isolation | 3-way isolator, between input ⁄ output ⁄ supply |
|---|---|
| Insulation voltage input or output/supply | 2.2 kVAC, 1 min, 50 Hz |
| Rated voltage | 300 VAC (supply-output), 500 VAC (supply-input; input-output) |
Temperatures
| Humidity | 5...95 %, no condensation |
|---|---|
| Operating temperature, min. | -25 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
| Operating temperature, max. | 65 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -25 °C...65 °C |
