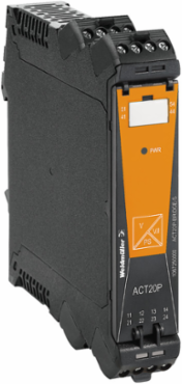

Weidmuller 2456820000 ACT20P Measuring Bridge Converter, 0(4)-20 mA, 1 Input, 0.886 Inch Width, 4.472 Inch Depth
- MPN: 2456820000
- PPN: WDM-2456820000
CAD
$688.24
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Measuring bridge converter, Resistance measuring bridge, 0(4)-20 mA
Documentation & Downloads
Specifications
General Data

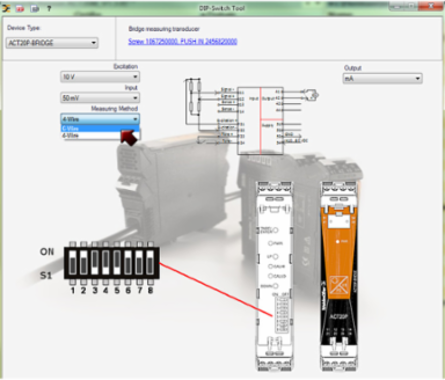

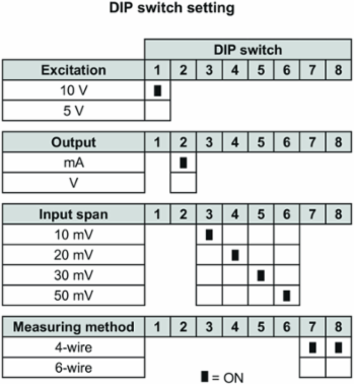

- Configuration
- DIP switch and button
- Long-term drift
- 0.1 % / 10.000 h
- Rail
- TS 35
- Step response time
- < 400 ms (10…90 %)
- Voltage supply
- 10…60 V DC
LinearityTypically ± 0.05 % of signal range
Power consumption3 W @ 24 V DC
Repeat accuracy± 0.05 % of final value
Temperature coefficienttyp. 0.005 % / °C
Approvals
- ROHS
- Conform

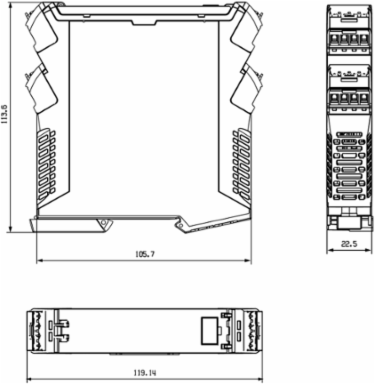

Dimensions And Weights
- Width
- 22.5 mm
- Height
- 127.1 mm
- Depth
- 113.6 mm
- Net weight
- 157 g
Width (inches)0.886 inch
Height (inches)5.004 inch
Depth (inches)4.472 inch
Connection Data

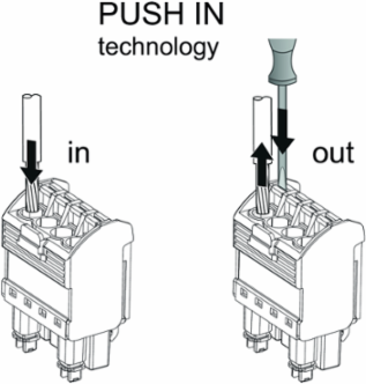

- Type of connection
- PUSH IN
- Wire connection cross section AWG, max.
- AWG 14
- Wire cross-section, solid, max.
- 2.5 mm²
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 2.5 mm²
Wire connection cross section AWG, min.AWG 26
Wire cross-section, solid, min.0.2 mm²
Wire connection cross-section, finely stranded, min.0.2 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.2 mm²
Input
- Number of inputs
- 1
- Sensor supply
- 120 mA @ 10 V (= 4 x 350 Ω bridge resistors)
- Bridge supply voltage
- 5 V or 10 V
SensorResistance measuring bridge, Total resistance of all parallel resistance measuring bridges: min. 87Ω
Input measurement range± 10 mV / ± 20 mV / ± 30 mV / ± 50 mV (adjustable)
Bridge sensitivity1.0 mV / V to 5.0 mV / V
Output (Analogue)
- Type (analogue output)
- Voltage and current output (configurable)
Classifications
- ETIM 6.0
- EC002653
- eClass 9.0
- 27-21-01-20
- eClass 10.0
- 27-21-01-20
ETIM 7.0EC002653
eClass 9.127-21-01-90
Output
- Type
- Voltage and current output (configurable)
- Output current
- 0…22 mA (adjustable)
- load impedance current
- ≤ 600 Ω
Output voltage, note0…11 V (adjustable)
load impedance voltage600 Ω
Product Information
- Product information

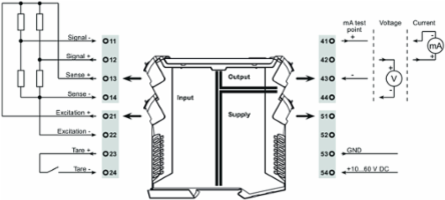

- The ACT20P-BRIDGE-P bridge measuring transducer converts measuring bridge voltages into standard signals. Buttons are used for adjustment to the measuring bridge connected. The bridge measuring transducer can supply up to 4 parallel-connected measuring bridges each with 350 Ω. The device supports simple compensation of the tare weight with a separate input for an external button or an external PLC signal. The power supply is galvanically isolated from input and output (3-way isolation).T Features 4-wire and 6-wire measurement Supply of up to 4 parallel-connected measuring bridges each with 350 Ω Input and output ranges can be adjusted via DIP switches Tare compensation via external button or PLC signal Front LED indicates operation status 3-way galvanic isolation between input, output and power supply
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- EMC standards
- EN 61326
- Pollution severity
- 2
- Surge voltage category
- III
Insulation voltage5.7 kV (input / output, input / supply)
Rated voltage300 Veff
Temperatures
- Humidity
- 10…90 %, no condensation
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
Operating temperature, max.70 °C
Storage temperature, max.85 °C
Operating temperature-40 °C...70 °C
