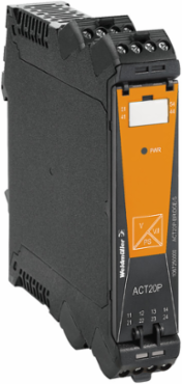

Weidmuller 1067250000 ACT20P Bridge Measuring Transducer, 0.886 Inch Width, Configurable Voltage and Current Output
- MPN: 1067250000
- PPN: WDM-1067250000
CAD
$668.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Measuring bridge converter, Resistance measuring bridge, 0(4)-20 mA
Documentation & Downloads
Specifications
General Data

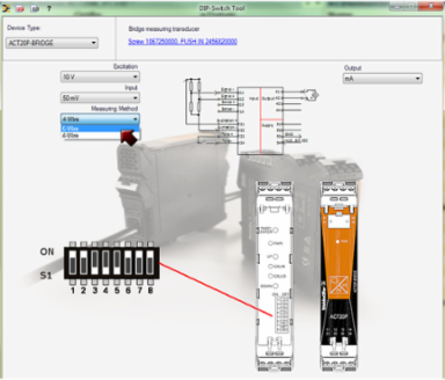

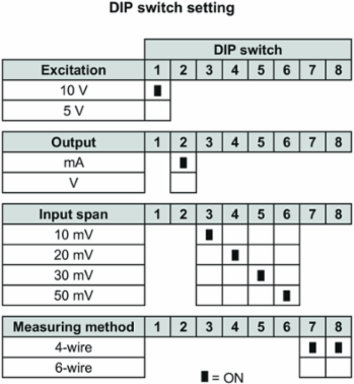

- Configuration
- DIP switch and button
- Long-term drift
- 0.1 % / 10.000 h
- Rail
- TS 35
- Step response time
- < 400 ms (10…90 %)
- Voltage supply
- 10…60 V DC
LinearityTypically ± 0.05 % of signal range
Power consumption3 W @ 24 V DC
Repeat accuracy± 0.05 % of final value
Temperature coefficienttyp. 0.005 % / °C
Probability Of Failure
- MTTF
- 543 Years
Approvals
- ROHS
- Conform

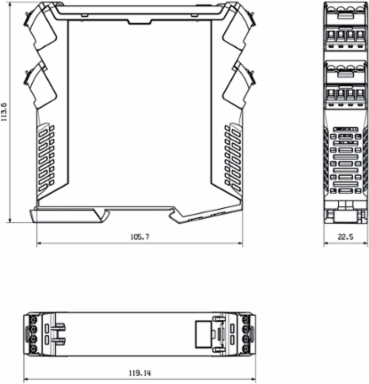

Dimensions And Weights
- Width
- 22.5 mm
- Height
- 119.2 mm
- Depth
- 113.6 mm
- Net weight
- 176 g
Width (inches)0.886 inch
Height (inches)4.693 inch
Depth (inches)4.472 inch
Connection Data
- Type of connection
- Screw connection
- Tightening torque, max.
- 0.6 Nm
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 26
Tightening torque, min.0.4 Nm
Clamping range, rated connection2.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 12
Rated Data Ul
- UL certificate
- Listing no.: E256486
Tender Specification Sheets
- Long specification
- Bridge measuring transformer with electrical 3-way isolation, configurablemeasurement isolating transformer in 22.5 mm width with external power supply, for recording,transforming and isolating of measurements from industrial strain gauges.Standard DC current/voltage signals are available on the output side. Measuring bridges of up to3 x 350 Ohm can be supplied via the input circuit. Automatic tare calibrationvia external switch signal, or manually with a press of a button.6-wire connection compensates for differences in wire resistance. Bridge excitation voltagecan be switched between 5 v and 10 V. Load cells can be calibrated using a button on the front side.I/O signals can be configured via DIP switches.Add-on housing for TS35 rail mountingDimensions: L/W/H 119.2/ 22.5/ 113.6 mmScrew connection / Nominal cross-section 2.5 mm2Protection degree: IP 20 Input Resistance measuring bridge / 1 mV / V... 5 mV / VBridge sensitivity +/- 10 mV / +/- 20 mV / +/- 30 mV / +/- 50 mV (adjustable)Input resistance > 1 MOhmBridge supply 5 V or 10 V Output 0...11 V / 0...22 mA configurable Load resistance < 600 Ohm/ Strom/> 1 kOhm/ voltageTemperature coefficient typ. 50 ppm / KTransmission error typ. 0.05 % of inputStep response time < 400 ms (10...90 %)Auxiliary power 10...60 VDC Ambient temperature range -40°C...+70 °CIsolation EN 50178, 3-way isolation up to 5.7 kV of all circuits against each otherTest voltage 4 kV input against output against auxiliary powerRated voltage 300 V AC/DC at overvoltage category III and pollution degree 2Approvals cULusType ACT20P-BRIDGE-S
Short specificationBridge measuring transformer with electrical 3-way isolation, configurablemeasurement isolating transformer in 22.5 mm width with external power supply, for recording, transforming and isolating of measurements from industrial strain gauges. Standard DC current/voltages signals are available on the output side. Measuring bridges of up to 3 x 350 Ohm can be supplied via the input circuit. Automatic tare calibration via external switch signal, or manually with a press of a button. 6-wire connection compensates for differences in wire resistance. Bridge excitation voltage can be switched between 5 v and 10 V. Load cells can be calibrated using a button on the front side. I/O signals can be configured via DIP switches.

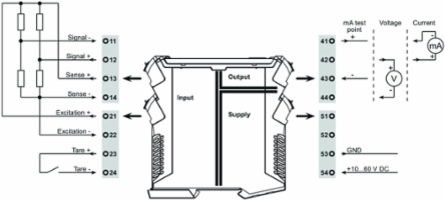

Input
- Number of inputs
- 1
- Sensor supply
- 120 mA @ 10 V (= 4 x 350 Ω bridge resistors)
- Bridge supply voltage
- 5 V or 10 V
SensorResistance measuring bridge, Total resistance of all parallel resistance measuring bridges: min. 87Ω
Input measurement range± 10 mV / ± 20 mV / ± 30 mV / ± 50 mV (adjustable)
Bridge sensitivity1.0 mV / V to 5.0 mV / V
Output (Analogue)
- Type (analogue output)
- Voltage and current output (configurable)
Classifications
- ETIM 6.0
- EC002653
- eClass 9.0
- 27-21-01-20
- eClass 10.0
- 27-21-01-20
ETIM 7.0EC002653
eClass 9.127-21-01-90
Output
- Type
- Voltage and current output (configurable)
- Output current
- 0…22 mA (adjustable)
- load impedance current
- ≤ 600 Ω
Output voltage, note0…11 V (adjustable)
load impedance voltage600 Ω
Product Information
- Product information
- The ACT20P-BRIDGE-S bridge measuring transducer converts measuring bridge voltages into standard signals. Buttons are used for adjustment to the measuring bridge connected. The bridge measuring transducer can supply up to 4 parallel-connected measuring bridges each with 350 Ω. The device supports simple compensation of the tare weight with a separate input for an external button or an external PLC signal. The power supply is electrogalvanised and isolated from the input and output (3-way isolation). Properties 4-wire and 6-wire measurement Supply of up to 4 parallel-connected measuring bridges each with 350 Ω Input and output ranges can be adjusted via DIP switches Tara compensation via external button or PLC signal Operating status display on a front panel LED Galvanic 3-way isolation between input, output and supply.
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- EMC standards
- EN 61326
- Pollution severity
- 2
- Surge voltage category
- III
Insulation voltage5.7 kV (input / output, input / supply)
Rated voltage300 Veff
Temperatures
- Humidity
- 10…90 %, no condensation
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
Operating temperature, max.70 °C
Storage temperature, max.85 °C
Operating temperature-40 °C...70 °C
