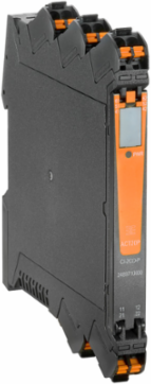

Weidmuller 2489710000 Signal Distributor, 0(4)-20 mA Input, 2 x 4-20 mA Output, 157 g
- MPN: 2489710000
- PPN: WDM-2489710000
CAD
$403.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Signal distributor, Input : 0(4)-20 mA, Output : 2 x 4-20 mA
Documentation & Downloads
Specifications
General Data
- Accuracy
- < 0.1 % of end value
- Current consumption
- ≤60 mA (24V power supply, 20mA output)
- Rail
- TS 35
- Temperature coefficient
- 80 ppm/K
Configurationnone
Galvanic isolation3-way isolator, between input ⁄ output ⁄ supply
Step response time≤ 0,5 ms
Voltage supply20…30 V DC
Approvals
- ROHS
- Conform

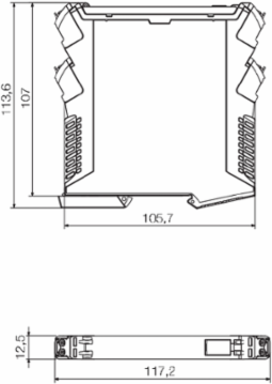

Dimensions And Weights
- Width
- 12.5 mm
- Height
- 127.1 mm
- Depth
- 113.7 mm
- Weight
- 157 g
Width (inches)0.492 inch
Height (inches)5.004 inch
Depth (inches)4.476 inch
Net weight125 g
Connection Data

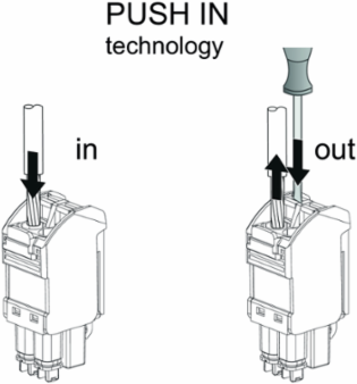

- Type of connection
- PUSH IN
- Wire connection cross section AWG, max.
- AWG 14
- Wire cross-section, solid, max.
- 2.5 mm²
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 2.5 mm²
Wire connection cross section AWG, min.AWG 26
Wire cross-section, solid, min.0.2 mm²
Wire connection cross-section, finely stranded, min.0.2 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.2 mm²
Input
- Number of inputs
- 1
- Input signal
- 2-/3-wire transmitter, HART signal® bidirectional
- Voltage drop
- ca. 3.8 V @ RLoad = 0 Ω; ca. 15 V @ RLoad = 600 Ω; (Iinput = 20 mA)
Sensor supply> 17 V DC at 20 mA, max 30 V @ open circuit, max 50 mA @ short-circuit
Input current0...20 mA, 4…20mA
Classifications
- ETIM 6.0
- EC002653
- eClass 9.0
- 27-21-01-20
- eClass 10.0
- 27-21-01-20
ETIM 7.0EC002653
eClass 9.127-21-01-90
Output
- Number of outputs
- 2
- load impedance current
- < 300 Ω
Output current0...20 mA, 4...20 mA, HART® digital signal
Product Information
- Product information

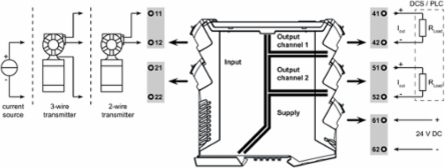

- The non-adjustable DC isolating amplifier ACT20P-CI-2CO isolates analogue standard current signals from a power source or from a 2- or 3-wire sensor. An analogue input current signal is converted linearly and doubled to provide two galvanically isolated output current signals. The power supply is galvanically isolated from the input and output (4-way isolation). Properties HART-compatible for 0.5 - 2.5 kHz The active or passive mA signal inputs are fully galvanically isolated. Operating status display on a front panel LED Galvanic 4-way isolation between input, output and supply.
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- EMC standards
- EN 61010-1:2011, UL 61010-1, EN 61326-1
- Impulse withstand voltage
- 4 kV (1.2/50 µs)
- Insulation voltage input or output/supply
- 2 kV inputs / outputs / power supply
- Surge voltage category
- III
Galvanic isolation3-way isolator, between input ⁄ output ⁄ supply
Insulation voltage2 kV inputs / outputs / power supply
Pollution severity2
Temperatures
- Humidity
- 5...95 %, no condensation
- Operating temperature, min.
- -20 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
Operating temperature, max.60 °C
Storage temperature, max.85 °C
Operating temperature-20 °C...60 °C
