Schneider Electric

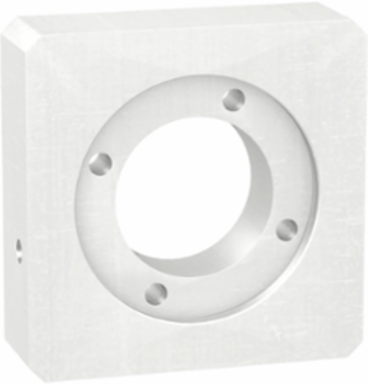

Schneider Electric GBK1201300C adaptation kit, Lexium 28, for assembly motor and gearbox

adaptation kit, Lexium 28, for assembly motor and gearbox
  • MPN: GBK1201300C
  • PPN: SCH-GBK1201300C

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$242.72/ EA

    Description

    adaptation kit, Lexium 28, for assembly motor and gearbox

    Specifications

    Specifications

    Gearbox External Diameter
    120 mm
    Range Compatibility
    Lexium 28
    Product Compatibility
    BCH2
    Kit Composition
    an adaptor plate || screws and bolts for mounting || a shaft end adaptor
    Accessory / Separate Part Categoryadaptation accessory
    Product Or Component Typeadaptation kit
    Device Short NameGBK
    Accessory / Separate Part Destinationfor assembly motor and gearbox

    Complementary

    Number Of Motor Stacks
    4
    Net Weight
    1.35 kg
    Length36.8 mm
    Motor Flange Size130 mm

    Downloads
