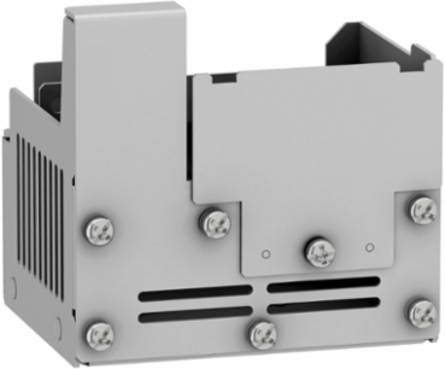

Schneider Electric VW3A95813 Altivar Machine ATV320 UL Type 1 Conformity Kit for 1.1kW-2.2kW Drives
- MPN: VW3A95813
- PPN: SCH-VW3A95813
CAD
$75.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This UL conformity kit is part of the Altivar Machine ATV320 range, an offer of drives designed for Original Equipment Manufacturers (OEMs). This optional kit enables your Altivar variable speed drive to meet UL type 1 requirements. Its frame size is 2C. Thanks to this kit, cables can be directly connected to the drive via tubes or cable glands. The shielding is connected inside the kit. It weighs 0.480kg (1.058lb). This kit can be used to ensure UL Type 1 conformity even when the drive is mounted directly on a wall outside the enclosure. It is compatible with ATV320-C drives, rated at 1.1kW, 1.5kW, 0.55kW, or 2.2kW to feed 3-phase motors from 200V to 240V. The kit is delivered in one package including fixing accessories. This kit is mounted to the lower part of the drive. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.
Features
- This mechanical conformity kit upgrades your compact drive to meet strict UL Type 1 safety standards, allowing for secure, stand-alone wall mounting. By eliminating the absolute requirement for a secondary electrical cabinet, it drastically reduces infrastructure hardware costs and optimizes floor space on compact machine builds.
- Engineered exclusively for Frame Size 2C Altivar Machine ATV320 compact drives, this kit guarantees a seamless mechanical match without loose gaps or overlapping edges. It is tailored to seamlessly fit 200V to 240V 3-phase compact drives rated at 1.1 kW, 1.5 kW, and 2.2 kW (1.5 hp to 3 hp), ensuring trouble-free alignment during field integration.
- The underside structure features designated knockouts that allow electrical cables to interface directly with the variable speed drive through standard conduit tubes or liquid-tight cable glands. This specialized path safely routes input lines, motor leads, and control wires while protecting the lower terminals from accidental physical contact or falling debris.
- Built as a straightforward, bolt-on bottom attachment, the kit mounts directly to the base of the drive using the included factory hardware. This plug-and-work design allows automation panel builders and OEM technicians to achieve field conformity in minutes, reducing wiring labor and simplifying routine preventative drive maintenance.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia, Singapore, United States |
|---|
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Weee Applicability | Component |
| Weee Exclusion Rationale | Product/component not in scope – not electric/electronic device |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Mounting Location | underside of drive |
| Range Of Product | Altivar |
| Sustainable Packaging | No |
| Accessory / Separate Part Category | mounting and fixing accessories |
| Accessory / Separate Part Type | kit for UL type 1 conformity |
| Package Weight(Lbs) | 850.0 g |
| Warranty (In Months) | 18 |
| Local Publishable Date | 2026-01-12 |
|---|---|
| Stocking Flag | Y |
| Device Type | Variable speed drive - VSD option & accessory |
| Traceability | No |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1927 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Kit Composition | mechanical device |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Certificate Agency | UL Type 1 |
| Accessory / Separate Part Destination | variable speed drive |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8504909690 |
Environment Attributes Main
| Product Compatibility | variable speed drive ATV320...C 1.1 kW, 200...240 V, three phase, variable speed drive ATV320...C 1.5 kW, 200...240 V, three phase, variable speed drive ATV320...C 2.2 kW, 200...240 V, three phase |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Range Of Product | Altivar |
|---|
ETIM
| ETIM 8 | EC002025 |
|---|
| ETIM 9 | EC002025 |
|---|
