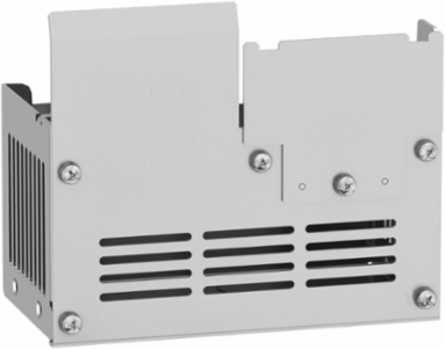

Schneider Electric VW3A95814 Altivar Machine ATV320 UL Type 1 Compliance Kit, Frame Size 3C
- MPN: VW3A95814
- PPN: SCH-VW3A95814
CAD
$75.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This UL conformity kit is part of the Altivar Machine ATV320 range, an offer of drives designed for Original Equipment Manufacturers (OEMs). This optional kit enables your Altivar variable speed drive to meet UL type 1 requirements. Its frame size is 3C (140mm/5.5in wide x 118mm/4.64in high, and 74mm/2.9in deep). Thanks to this kit, cables can be directly connected to the drive via tubes or cable glands. The shielding is connected inside the kit. It weighs 0.550kg (1.213lb). This kit can be used to ensure UL Type 1 conformity even when the drive is mounted directly on a wall outside the enclosure. It is compatible with ATV320-C drives, rated at 2.2kW, 3kW, or 4kW to feed 3-phase motors rated 380V to 500V or 525V to 600V. The kit is delivered in one package including fixing accessories. This kit is mounted to the lower part of the drive. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.
Features
- This kit transforms your standard Schneider Electric Altivar Variable Frequency Drive (VFD) from an IP20 open-chassis unit into a fully compliant UL Type 1 (NEMA 1) enclosure. By providing a rugged protective shroud, it allows you to safely mount the drive directly to a wall or machinery frame outside of a dedicated electrical cabinet, significantly reducing your total installation footprint and hardware costs.
- ngineered as a genuine Schneider Electric accessory, this kit is precision-matched for use with Altivar 12 (ATV12) and Altivar 320 (ATV320) series drives of specific frame sizes. Using factory-authorized hardware guarantees a perfect mechanical fit and maintains the drive’s thermal efficiency, ensuring your motor control system operates at peak performance without the risk of overheating associated with third-party enclosures.
- By upgrading to UL Type 1 status, your installation adheres to National Electrical Code (NEC) requirements for indoor protection against falling dirt and incidental contact with live components. This protective barrier increases workplace safety for your technicians and ensures your facility's electrical distribution system passes rigorous municipal safety inspections, protecting you from potential compliance fines or insurance liabilities.
Documentation & Downloads
Specifications
Additional
- Power Rating
- 2.2 kW, 3 kW, 4 kW
- Phase
- Three phase
- Weight
- 0.550 kg
- Mounting Location
- Underside of drive
- Compliance
- UL Type 1, RoHS Compliant, Prop 65 Compliant
- Mercury Free
- Yes
- Range
- Altivar
- Accessory Type
- Kit for UL Type 1 conformity
- Accessory Destination
- Variable speed drive
Voltage380-500 V, 525-600 V
Dimensions140 mm x 118 mm x 74 mm
Frame Size3C
MaterialMechanical device
REACH SVHC FreeYes
Range CompatibilityAltivar Machine ATV320
Product CompatibilityVariable speed drive ATV320 2.2 kW, 3 kW, 4 kW, 380-500 V, 525-600 V, three phase
Accessory CategoryMounting and fixing accessories
