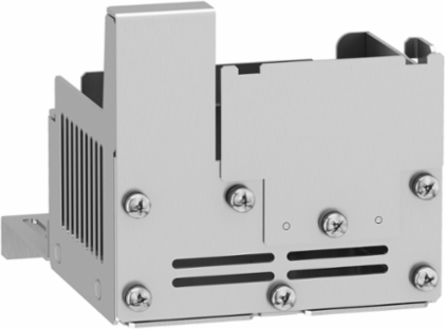

Schneider Electric VW3A95812 Altivar Machine ATV320 UL Type 1 Conformity Kit, 4.13 Inch x 3.9 Inch x 3.4 Inch

MPN: VW3A95812
PPN: SCH-VW3A95812

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$75.45

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This UL conformity kit is part of the Altivar Machine ATV320 range, an offer of drives designed for Original Equipment Manufacturers (OEMs). This conformity kit enables your Altivar variable speed drive to meet UL type 1 requirements. Its frame size is 2C (105mm/4.13in wide x 99.5mm/3.9in high, and 87.4mm/3.4in deep). Thanks to this kit, cables can be directly connected to the drive via tubes or cable glands. The shielding is connected inside the kit. It weighs 0.370kg (0.816lb). This kit can be used to ensure UL Type 1 conformity even when the drive is mounted directly on a wall outside the enclosure. It is compatible with ATV320 drives to feed single phase or 3-phase motors from 200V to 240V, 380V to 500V, or 525V to 600V. The kit is delivered in one package including fixing accessories. This kit is mounted to the lower part of the drive. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.

Features

The rugged mechanical housing features built-in, pre-punched knockout fields optimized for standard electrical conduit fittings. This permits industrial electricians to cleanly anchor flexible metal conduit lines or liquid-tight fittings directly to the bottom of the drive, streamlining cable management while keeping high-voltage wiring paths separated.
Engineered in tandem with the ATV320 thermal dissipation chassis, this mechanical module completely shields incoming terminations without choking the drive's cooling layout. It preserves the manufacturer's open convective airflow loops, allowing internal heat-sinking fans to move heat away from internal power electronics to prevent nuisance thermal tripping.
Weighing a net 890 grams (1.96 lbs), this compact metal and plastic shield adds negligible bulk to the drive's mounting footprint. The lightweight kit comes packed with the necessary mounting hardware, letting field technicians quickly complete solo retrofits onto pre-installed VFDs inside standard field panels or ventilated machine enclosures.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia, Singapore

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Weee Applicability	Component
Weee Exclusion Rationale	Product/component not in scope – not electric/electronic device
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Mounting Location	underside of drive
Range Of Product	Altivar
Sustainable Packaging	No
Accessory / Separate Part Category	mounting and fixing accessories
Accessory / Separate Part Type	kit for UL type 1 conformity
Package Weight(Lbs)	890 g
Warranty (In Months)	18

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Local Publishable Date	2026-01-12
Stocking Flag	Y
Device Type	Variable speed drive - VSD option & accessory
Traceability	No
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1927
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Kit Composition	mechanical device
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Certificate Agency	UL Type 1
Accessory / Separate Part Destination	variable speed drive
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8504909690

Environment Attributes Main

Product Compatibility	variable speed drive ATV320...C 1.5 kW, 200...240 V, single phase, variable speed drive ATV320...C 1.1 kW, 380...500 V, three phase, variable speed drive ATV320...C 1.5 kW, 380...500 V, three phase, variable speed drive ATV320...C 0.75 kW, 525...600 V, three phasevariable speed drive ATV320...C 1.1 kW, 200...240 V, single phase, variable speed drive ATV320...C 1.5 kW, 525...600 V, three phase, variable speed drive ATV320...C 2.2 kW, 200...240 V, single phasevariable speed drive ATV320...C 0.37 kW, 380...500 V, three phase, variable speed drive ATV320...C 0.55 kW, 380...500 V, three phase, variable speed drive ATV320...C 0.75 kW, 380...500 V, three phase
Reach Free Shvc	Yes
China Rohs Regulation	X
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes

Take Back	No
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
