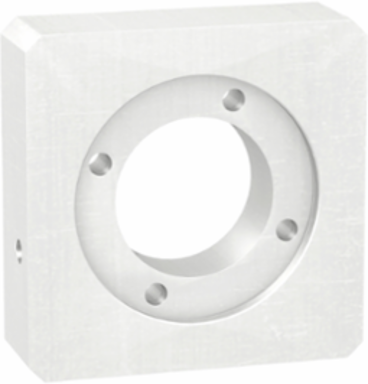

Schneider Electric GBK0800702F Adaptation Kit for Lexium 32 & Motors, Gearbox Ø80mm, Length 21.2mm

Adaptation Kit for Lexium 32 & Motors, Gearbox Ø80mm, Length 21.2mm
  • MPN: GBK0800702F
  • PPN: SCH-GBK0800702F

Spec sheet

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$137.69/ EA

    Description

    The adaptation kit designed by Schneider Electric for Lexium 32 and motors offers a perfect solution for integrating gearbox elements with an 80mm diameter. With a length of 21.2mm, this kit is essential for maintaining seamless operation within motion control applications, ensuring optimal performance and compatibility with your existing systems. Ideal for automation and control scenarios, it helps streamline the assembly process and enhances the reliability of servo drives in various industrial setups.

    Specifications

    Length
    21.2 mm (0.83 in)
    Motor Flange Size
    70 mm (2.76 in)
    Net Weight
    0.45 kg
    Adaptor Plate Outer Dimensions
    19 x 11 x 26 mm (0.74 x 0.43 x 1.02 in)
    Range Compatibility
    Lexium 32i, Lexium 32, Lexium 62 ILM, Lexium 62, Lexium 52
    Accessory / Separate Part Destination
    for assembly motor and gearbox
    Kit Composition
    screws and bolts for mounting, an adaptor plate, a shaft end adaptor
    RoHS Compliance
    Yes (Pro-active, out of EU RoHS legal scope)
    REACH Compliance
    Contains SVHC above threshold
    PVC Free
    Yes
    Sustainable Offer Status
    Green Premium
    Gearbox External Diameter80 mm (3.15 in)
    Number Of Motor Stacks2
    Screw SizeM5
    Product CompatibilitySH3, ILM, MH3, BMI, BSH, BMH
    Accessory / Separate Part Categoryadaptation accessory
    Product Or Component Typeadaptation kit
    Warranty18 months
    China RoHSOut of China RoHS scope, substance declaration provided
    Mercury FreeYes
    Environmental DisclosureENVPEP111245EN
    Country of OriginGermany
