Schneider Electric GBK0600570A Lexium ILA Adaptation Kit for Motor and Gearbox, 60 mm, 16.1 mm Length

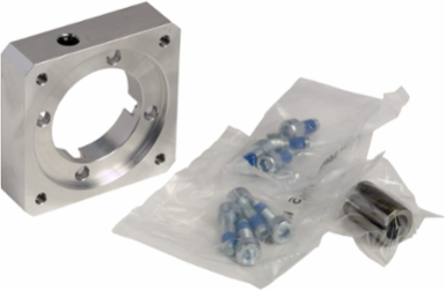

Lexium ILA Adaptation Kit for Motor and Gearbox, 60 mm, 16.1 mm Length
  • MPN: GBK0600570A
  • PPN: SCH-GBK0600570A

Spec sheet

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$119.94/ EA

    Description

    The Lexium ILA Adaptation Kit from Schneider Electric is designed to seamlessly integrate with motors and gearboxes, specifically those measuring 60 mm in diameter and 16.1 mm in length. This adaptation kit enhances the versatility and efficiency of motion control systems, making it an essential component for automation solutions. With its precise engineering, the kit facilitates reliable connectivity and performance, ensuring that your applications operate smoothly and effectively, thus addressing the demands of modern automation and control environments.

    Specifications

    Gearbox External Diameter
    60 mm (2.36 in)
    Length
    16.1 mm (0.63 in)
    Net Weight
    0.2 kg (0.44 lb)
    Range Compatibility
    Lexium ILA
    Accessory / Separate Part Destination
    for assembly motor and gearbox
    Mercury Free
    Yes
    Warranty
    18 months
    Rohs Exemption Information
    Yes
    Reach Regulation
    Contains Substances of Very High Concern above threshold
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Device Short Name
    GBK
    Motor Flange Size57 mm (2.24 in)
    Number Of Motor Stacks2, 3, 1
    Product Or Component Typeadaptation kit
    Accessory / Separate Part Categoryadaptation accessory
    Sustainable Offer StatusGreen Premium product
    Pvc FreeYes
    Circularity ProfileN/A
    China Rohs RegulationProduct out of China RoHS scope
    Product CompatibilityILA
    Environmental DisclosureENVPEP111245EN
    Kit Compositionshaft end adaptor, screws and bolts, adaptor plate
