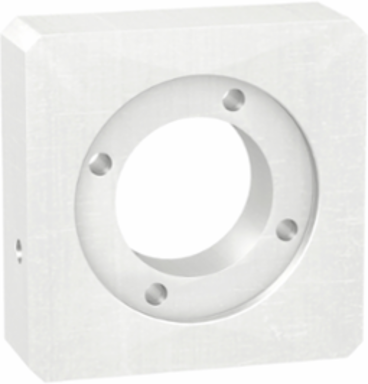

Schneider Electric GBK0800852S adaptation kit, Lexium, GBK, size 80, 21mm, for assembly motor and gearbox

MPN: GBK0800852S
PPN: SCH-GBK0800852S

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$141.83/ EA

Qty:

Loading add to cart quantity...

Description

adaptation kit, Lexium, GBK, size 80, 21mm, for assembly motor and gearbox

Specifications

Complementary

Number Of Motor Stacks: 1 || 2

Net Weight: 0.45 kg

Length21.2 mm

Motor Flange Size85 mm

Specifications

Gearbox External Diameter: 80 mm

Range Compatibility: Lexium ILS || Lexium SD3

Product Compatibility: BRS3 || ILS

Kit Composition: an adaptor plate || screws and bolts for mounting || a shaft end adaptor

Accessory / Separate Part Categoryadaptation accessory

Product Or Component Typeadaptation kit

Device Short NameGBK

Accessory / Separate Part Destinationfor assembly motor and gearbox

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP111245EN

Pvc Free: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Contractual warranty

Warranty: 18 months
