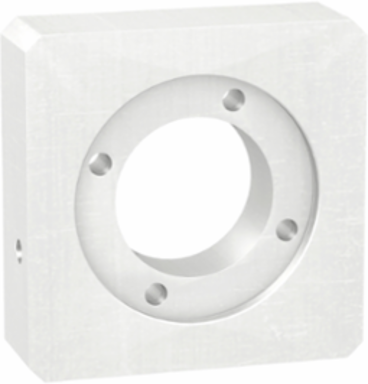

Schneider Electric GBK1200703F adaptation kit, Lexium, for assembly motor and gearbox

MPN: GBK1200703F
PPN: SCH-GBK1200703F

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$313.15/ EA

Qty:

Loading add to cart quantity...

Description

adaptation kit, Lexium, for assembly motor and gearbox

Specifications

Complementary

Number Of Motor Stacks: 3 || 1 || 2

Net Weight: 0.65 kg

Length21.8 mm

Motor Flange Size70 mm

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP111245EN

Pvc Free: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Specifications

Gearbox External Diameter: 120 mm

Range Compatibility: Lexium 32i || Lexium 62 || Lexium 52 || Lexium 62 ILM || Lexium 32

Product Compatibility: BMH || SH3 || BMI || BSH || MH3 || ILM

Kit Composition: screws and bolts for mounting || a shaft end adaptor || an adaptor plate

Accessory / Separate Part Categoryadaptation accessory

Product Or Component Typeadaptation kit

Device Short NameGBK

Accessory / Separate Part Destinationfor assembly motor and gearbox

Contractual warranty

Warranty: 18 months
