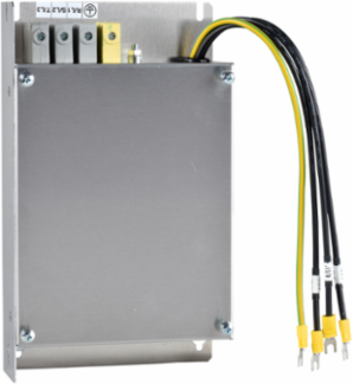

Schneider Electric VW3A31406 EMC Input Filter 3-Phase 25A, IP20, 1.65 kg Weight
- MPN: VW3A31406
- PPN: SCH-VW3A31406
CAD
$223.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 25A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C1, C2 or C3. Its protection index is IP20. It weighs 1.650kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems. It can be mounted beside or under the drive. The drive's power supply is then connected directly via the filter output cable.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Altivar
- Product Or Component Type
- EMC input filter
- Product Specific Application
- radio interference input filter
- Range Compatibility
- Altivar Machine ATV320 || Lexium 23 Plus || Altivar 212 || Altivar 31C || Lexium 05 || Altivar 312 || Altivar 312 Solar
Product Compatibilityservo drive LXM234.5 kW || servo drive LXM235.5 kW || ATV212HU30M3X || ATV212HU30N4 || ATV212HU40M3X || ATV212HU40N4 || ATV212HU55N4 || ATV31CU22N4 || ATV31CU30N4 || ATV31CU40N4 || LXM05AD22N4 || LXM05AD34N4 || LXM05AD42M3X || LXM05BD22N4 || LXM05BD34N4 || LXM05BD42M3X || LXM05CD22N4 || LXM05CD34N4 || ATV312HU22N4 || ATV312HU30N4 || ATV312HU40N4 || ATV312HU30M3 || ATV312HU40M3 || variable speed drive ATV320...C2.2 kW, 380...500 V three phase || variable speed drive ATV320...C3 kW, 380...500 V three phase || variable speed drive ATV320...C4 kW, 380...500 V three phase || variable speed drive ATV320...C3 kW, 200...240 V three phase || variable speed drive ATV320...C4 kW, 200...240 V three phase || variable speed drive ATV320...W/ATV320...WS2.2 kW, 380...500 V three phase || variable speed drive ATV320...W/ATV320...WS3 kW, 380...500 V three phase || variable speed drive ATV320...W/ATV320...WS4 kW, 380...500 V three phase
Network Number Of Phasesthree phase
[In] Rated Current25 A
Thermal Losses1 W ATV21HU30N4 || 3 W ATV21HU55N4 || 1.6 W ATV21HU40N4 || 15.8 W ATV31CU22N4 || 3.6 W ATV21HU30M3X || 6.2 W ATV21HU40M3X
Complementary
- Tolerance
- 10 %
- Earth Leakage Current
- 35 mA 50 Hz || 37 mA 480 V 60 Hz || 17.8 mA 480 V 60 Hz
- Tightening Torque
- 1.8 N.m
Net Weight1.65 kg || 1.35 kg
Network Rated Voltage380-500 V || 200-240 V
Electrical Connectionterminal 10 mm² AWG 6
Environment
- Standards
- IEC 61800-3
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP20 || IP41 upper part)
Ambient Air Temperature For Operation-10-50 °C
Vibration Resistance1 gn 13-150 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6
Relative Humidity0-93 % IEC 68-2-3
Operating Altitude<= 1000 m without current derating || 1000...3000 m with current derating 1 % per 100 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
