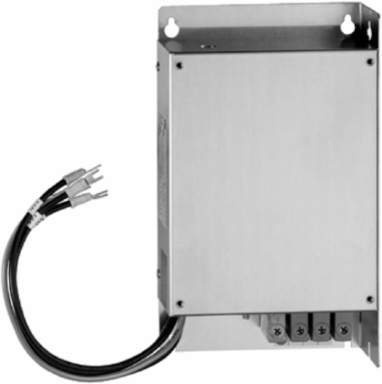

Schneider Electric VW3A4408 EMC Input Filter, 180 A, IP20, 40 kg for 3-Phase Supply
- MPN: VW3A4408
- PPN: SCH-VW3A4408
CAD
$1355.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 180A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C1, C2. Its protection index is IP20. It weighs 40kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Altivar
- Product Specific Application
- radio interference input filter
- Range Compatibility
- Altivar 61 || Altivar 71 || Altivar 212
- Thermal Losses
- 18 W ATV21HD55N4 || 34 W ATV21HD75N4 || 23.1 W ATV21HD30M3X || 58 W ATV61/ATV71 variable speed drives
Product CompatibilityATV212HD30M3X || ATV212HD55N4 || ATV212HD75N4 || ATV61HD30M3X || ATV61HD37M3X || ATV61HD45M3X || ATV61HD45N4 || ATV61HD55N4 || ATV61HD75N4 || ATV71HD30M3X || ATV71HD37M3X || ATV71HD45M3X || ATV71HD45N4 || ATV71HD55N4 || ATV71HD75N4 || ATV71WD45N4 || ATV71WD55N4 || ATV71WD75N4
[In] Rated Current180 A
Product Or Component TypeEMC input filter
Network Number Of Phasesthree phase
Complementary
- Tolerance
- 10 %
- Electrical Connection
- terminal 150 mm² 300 kcmil
- Earth Leakage Current
- 140 mA 400 V 50 Hz || 193 mA 480 V 60 Hz || 80 mA 400 V 50 Hz || 86.3 mA 480 V 60 Hz
Tightening Torque25 N.m
Net Weight40 kg
Network Rated Voltage380-500 V || 200-240 V
Environment
- Ambient Air Temperature For Storage
- -40-65 °C
- Standards
- EN 133200
- Operating Altitude
- <= 1000 m without current derating || <= 1000 m without derating || 1000...3000 m with current derating 1 % per 100 m
- Shock Resistance
- 15 gn 11 ms EN/IEC 60068-2-27
Relative Humidity0-93 % IEC 68-2-3
Ip Degree Of ProtectionIP20 || IP41 upper part)
Ambient Air Temperature For Operation-10-50 °C
Vibration Resistance1 gn 13-150 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
