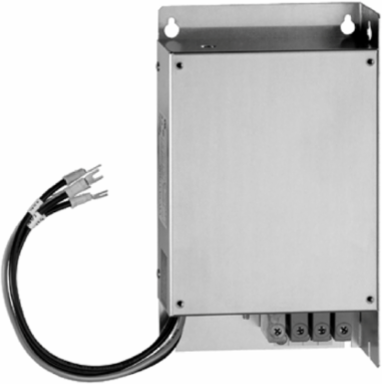

Schneider Electric VW3A4407 EMC Input Filter 3-Phase 92A IP20
- MPN: VW3A4407
- PPN: SCH-VW3A4407
CAD
$902.75
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 92A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C1, C2. Its protection index is IP20. It weighs 17kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Altivar |
|---|---|
| Product Specific Application | radio interference input filter |
| Range Compatibility | Altivar 61 || Altivar 71 || Altivar 212 |
| Thermal Losses | 16 W ATV21HD37N4 || 23 W ATV21HD45N4 || 30 W |
| Product Compatibility | ATV212HD37N4 || ATV212HD45N4 || ATV21HD37N4 || ATV21HD45N4 || ATV61HD30N4 || ATV61HD37N4 || ATV71HD30N4 || ATV71HD37N4 || ATV71WD30N4 || ATV71WD37N4 |
|---|---|
| [In] Rated Current | 92 A |
| Product Or Component Type | EMC input filter |
| Network Number Of Phases | three phase |
Complementary
| Tolerance | 10 % |
|---|---|
| Electrical Connection | terminal 50 mm² AWG 0 |
| Earth Leakage Current | 60 mA 400 V 50 Hz || 106 mA 480 V 60 Hz |
| Tightening Torque | 6 N.m |
|---|---|
| Net Weight | 17 kg |
| Network Rated Voltage | 200-240 V || 380-500 V |
Environment
| Ambient Air Temperature For Storage | -40-65 °C |
|---|---|
| Standards | EN 133200 |
| Operating Altitude | <= 1000 m without current derating || <= 1000 m without derating || 1000...3000 m with current derating 1 % per 100 m |
| Shock Resistance | 15 gn 11 ms EN/IEC 60068-2-27 |
| Relative Humidity | 0-93 % IEC 68-2-3 |
|---|---|
| Ip Degree Of Protection | IP20 || IP41 upper part) |
| Ambient Air Temperature For Operation | -10-50 °C |
| Vibration Resistance | 1 gn 13-150 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| China Rohs Regulation | X |
|---|---|
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Free Of Svhc | Yes |
| Rohs Exemption Information | Yes |
|---|---|
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
