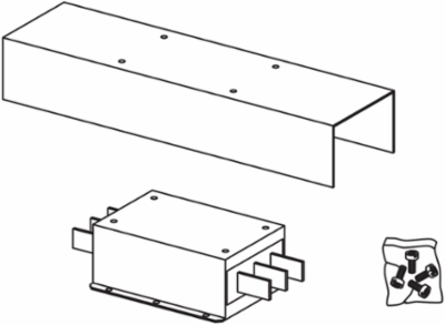

Schneider Electric VW3A4411 EMC Radio Interference Input Filter - 336/546 A, 125 W, 3-Phase Supply
- MPN: VW3A4411
- PPN: SCH-VW3A4411
CAD
$2232.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The EMC Radio Interference Input Filter from Schneider Electric is engineered to enhance the performance of your 3-phase supply systems by effectively mitigating radio frequency interference. Designed for use with systems rated for 336 to 546 Amperes and capable of handling up to 125 Watts, this filter plays a crucial role in ensuring reliable operation and compliance with electromagnetic compatibility standards. By integrating this filter into your setup, you can protect sensitive electronic equipment from disturbances, ultimately improving the efficiency and longevity of your industrial applications.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Altivar
- Product Specific Application
- radio interference input filter
- Range Compatibility
- Altivar Process ATV900 || Altivar 71 || Altivar Process ATV600 || Altivar 71Q || Altivar 61Q || Altivar 61
- Thermal Losses
- 125 W
Product CompatibilityATV61HC22N4 || ATV61HC25N4 || ATV61HC31N4 || ATV61HD90M3X || ATV61QC20N4 || ATV61QC25N4 || ATV61QC31N4 || ATV71HC16N4 || ATV71HC20N4 || ATV71HC25N4 || ATV71HC28N4 || ATV71QC16N4 || ATV71QC20N4 || ATV71QC25N4 || variable speed drive ATV630 wall mount, 220 kW, 380...480 V || variable speed drive ATV630 wall mount, 250 kW, 380...480 V || variable speed drive ATV630 wall mount, 315 kW, 380...480 V || variable speed drive ATV930 wall mount, 220 kW, 380...480 V || variable speed drive ATV930 wall mount, 250 kW, 380...480 V || variable speed drive ATV930 wall mount, 315 kW, 380...480 V
[In] Rated Current546 A || 336 A
Product Or Component TypeEMC input filter
Network Number Of Phasesthree phase
Complementary
- Tolerance
- 10 %
- Electrical Connection
- M10 bars
- Earth Leakage Current
- 500 mA 400 V 50 Hz
Maximum Motor Cable Length300 m shielded motor cable IEC 61800-3 category C2 || 50 m shielded motor cable IEC 61800-3 category C1
Net Weight25 kg || 22 kg
Network Rated Voltage200-240 V || 380-500 V
Environment
- Ambient Air Temperature For Storage
- -25-85 °C
- Standards
- IEC 61800-3
- Operating Altitude
- <= 1000 m without current derating || 1000...3000 m with current derating 1 % per 100 m
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
Relative Humidity0-93 % IEC 68-2-3
Ip Degree Of ProtectionIP00 || IP30with kits VW3A9601, 602
Ambient Air Temperature For Operation-25-45 °C
Vibration Resistance1 gn 13-150 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
