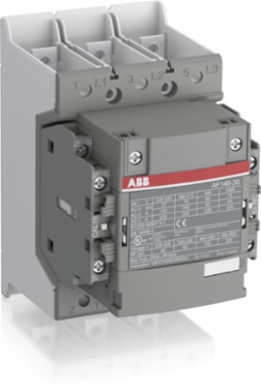

ABB AF146B-30-22-12 AF146B-30-22-12 Contactor
- MPN: AF146B-30-22-12
- UPC: 888614602359
- PPN: ABB-AF146B-30-22-12
- UNSPSC: 39121529
CAD
$4161.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The AF146B-30-22-12 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and standard ferrules, controlling motors up to 75 kW / 400 V AC (AC-3) or 100 hp / 480 V UL and switching power circuits up to 225 A (AC-1) or 200 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (48-130 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Specifications
Dimensions
- Product Net Width
- 90 mm
- Product Net Height
- 150 mm
Product Net Depth / Length126 mm
Product Net Weight1.55 kg
Technical
- Number of Main Contacts NO
- 3
- Number of Auxiliary Contacts NO
- 2
- Standards
- IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives.
- Rated Operational Current AC-1 (Ie)
- (1000 V) 40 °C 225 A(1000 V) 55 °C 200 A(1000 V) 60 °C 200 A(1000 V) 70 °C 175 A(690 V) 40 °C 225 A(690 V) 55 °C 200 A(690 V) 60 °C 200 A(690 V) 70 °C 175 A
- Rated Operational Current AC-3e (Ie)
- (415 V) 60 °C 146 A(440 V) 60 °C 146 A(500 V) 60 °C 130 A(690 V) 60 °C 93 A(1000 V) 60 °C 54 A(380 / 400 V) 60 °C 146 A(220 / 230 / 240 V) 60 °C 146 A
- Rated Operational Power AC-3e (Pe)
- (415 V) 75 kW(440 V) 90 kW(500 V) 90 kW(690 V) 90 kW(1000 V) 75 kW(380 / 400 V) 75 kW(220 / 230 / 240 V) 45 kW
- Rated Breaking Capacity AC-3e
- 8.5 x Ie AC-3e
- Rated Making Capacity AC-3e
- 12 x Ie AC-3e
- Rated Operational Current DC-1 (Ie)
- (110 V) 2 Poles in Series, 40 °C 200 A(110 V) 2 Poles in Series, 60 °C 200 A(110 V) 2 Poles in Series, 70 °C 175 A(110 V) 3 Poles in Series, 40 °C 200 A(110 V) 3 Poles in Series, 60 °C 200 A(110 V) 3 Poles in Series, 70 °C 175 A(175 V) 2 Poles in Series, 40 °C 200 A(175 V) 2 Poles in Series, 60 °C 200 A(175 V) 2 Poles in Series, 70 °C 175 A(220 V) 3 Poles in Series, 40 °C 200 A(220 V) 3 Poles in Series, 60 °C 200 A(220 V) 3 Poles in Series, 70 °C 175 A(260 V) 3 Poles in Series, 40 °C 200 A(260 V) 3 Poles in Series, 60 °C 200 A(260 V) 3 Poles in Series, 70 °C 175 A(72 V) 1-Pole, 40 °C 200 A(72 V) 1-Pole, 60 °C 200 A(72 V) 1-Pole, 70 °C 175 A(72 V) 2 Poles in Series, 40 °C 200 A(72 V) 2 Poles in Series, 60 °C 200 A(72 V) 2 Poles in Series, 70 °C 175 A(72 V) 3 Poles in Series, 40 °C 200 A(72 V) 3 Poles in Series, 60 °C 200 A(72 V) 3 Poles in Series, 70 °C 175 A(90 V) 1 Pole, 40 °C 200 A(90 V) 1 Pole, 60 °C 200 A(90 V) 1 Pole, 70 °C 175 A
- Maximum Mechanical Switching Frequency
- 300 cycles per hour
- Coil Consumption
- Holding at Max. Rated Control Circuit Voltage 50 Hz 4 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 4 V·APull-in at Max. Rated Control Circuit Voltage 50 Hz 180 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 180 V·APull-in at Max. Rated Control Circuit Voltage DC 150 W
Number of Main Contacts NC0
Number of Auxiliary Contacts NC2
Rated Operational VoltageMain Circuit 1000 V
Rated Operational Current AC-3 (Ie)(415 V) 55 °C 146 A(440 V) 55 °C 130 A(500 V) 55 °C 130 A(690 V) 55 °C 93 A(1000 V) 55 °C 60 A(380 / 400 V) 55 °C 146 A(220 / 230 / 240 V) 55 °C 146
Rated Operational Power AC-3 (Pe)(415 V) 75 kW(440 V) 90 kW(500 V) 90 kW(690 V) 90 kW(1000 V) 75 kW(380 / 400 V) 75 kW(220 / 230 / 240 V) 45 kW
Rated Breaking Capacity AC-38 x Ie AC-3
Rated Making Capacity AC-310 x Ie AC-3
Rated Short-time Withstand Current Low Voltage (Icw)at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1168 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 225 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 477 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1460 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 674 A
Mechanical Durability5 million
Rated Control Circuit Voltage (Uc)50 Hz / 60 Hz 48 ... 130 VDC Operation 48 ... 130 V
Terminal TypeMain Circuit: Bars
Eco Transparency
- Environmental Product Declaration - EPD
- 1SFC100092D0201
Classifications
- Object Classification Code
- Q
- ETIM 5
- EC000066 - Magnet contactor, AC-switching
- IDEA Granular Category Code (IGCC)
- 4755 >> Contactors
ETIM 4EC000066 - Magnet contactor, AC-switching
eClassV11.0 : 27371003
E-Number (Sweden)3210437
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU
Circular Value
- ABB EcoSolutions
- Yes
- End of Life Instructions
- 1SFC100112M0001
- Improved Resource Efficiency for Customers
- Product Efficiency - Product requires less energy to operate compared to similar product on market or older products from the same line
Circular Design Principles Recyclability RateDesign for Closing Resource Loops - Standard EN45555 - 87.8 %
Group Waste to Landfill TargetNon-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
Sustainable Material ContentRecycled Metal - 37 %
Technical UL/CSA
- General Use Rating UL/CSA
- (600 V AC) 200 A
Horsepower Rating UL/CSA(200 ... 208 V AC) Three Phase 40 hp(220 ... 240 V AC) Three Phase 50 hp(440 ... 480 V AC) Three Phase 100 hp(550 ... 600 V AC) Three Phase 125 hp
Ordering
- Minimum Order Quantity
- 1 piece
Customs Tariff Number85364900
