TeSys Deca Contactor 3P 25A 120V AC Coil 45mm Wide
Schneider Electric

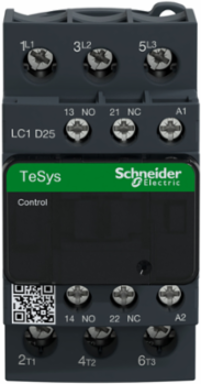

Schneider Electric LC1D25G7 TeSys Deca Contactor 3P 25A 120V AC Coil 45mm Wide

  • MPN: LC1D25G7
  • PPN: SCH-LC1D25G7
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $275.12

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Company Stock:

    0

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    TeSys D contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3/3e (11kW@400V). It provides a 120V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

    Features

    • The LC1D25G7 is a 3-pole (3 NO) TeSys Deca (formerly TeSys D) IEC contactor. It is a robust, mid-range industrial control component designed for starting and stopping three-phase motors up to 15 HP at 460V. It is commonly used for larger pumps, industrial fans, and heavy-duty conveyor systems.
    • The G7 suffix indicates a 120V AC (50/60 Hz) control coil. This is the industry standard for most North American control logic circuits. The coil is engineered for high-cycle reliability and can be replaced in the field if necessary, minimizing downtime for the machine.
    • Rated for 25A in the AC-3 category (inductive motor loads) and up to 40A in the AC-1 category (non-inductive resistive loads like heaters). Its 3-phase horsepower ratings include: 7.5 HP at 230V , 15 HP at 460V , 20 HP at 600V
    • Like other TeSys D contactors, the LC1D25G7 includes 1 NO (Normally Open) + 1 NC (Normally Closed) auxiliary contacts built directly into the housing. These are essential for electrical interlocking, status signaling to a PLC, or creating self-holding "start/stop" station circuits.
    • The unit is compact (45mm width) and snaps onto a standard 35mm DIN rail or can be screw-mounted to a panel backplate. It is UL Listed and CSA Certified. For complete motor protection, it should be paired with a Schneider LRD22 thermal overload relay, which provides protection against phase loss and motor overheating.

    Documentation & Downloads

    Specifications

    Additional

    Rated Operational Voltage
    power circuit <= 690 V AC 25...400 Hz, <= 300 V DC
    Motor Power
    11 kW at 400 V AC (AC-3)
    Maximum Operating Rate
    3600 cycles/hour at 60 0C
    Thermal Current
    40 A at 60 0C for power circuit
    Mechanical Durability
    15 M cycles
    Impulse Withstand Voltage
    6 kV IEC 60947
    Contact Composition
    3 NO poles
    Control Circuit Voltage
    120 V AC 50/60 Hz
    Tightening Torque
    15.05 lbf.in (1.7 N.m) control circuit, 22.13 lbf.in (2.5 N.m) power circuit screw clamp terminals
    Weight
    0.37 kg (0.82 lb)
    Pollution Degree
    3
    Flame Retardance
    V1 UL 94
    Environmental Compliance
    RoHS, REACh compliant, PVC free, Mercury free, Toxic Heavy Metal Free
    Standards
    CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1
    Rated Operational Current25 A AC-3 at <= 440 V
    Maximum Horsepower15 Hp at 460/480 V AC 3 phase motors
    Rated Breaking Capacity450 A at 440 V for power circuit conforming to IEC 60947
    Electrical Durability1.65 M cycles (25 A AC-3 <= 440 V), 1.4 M cycles (40 A AC-1 <= 440 V), 1.65 M cycles (25 A AC-3e <= 440 V)
    Operating Temperature Range-40 to 60 0C (140b0F)
    Insulation Voltage690 V IEC 60947
    Auxiliary Contactsmechanically linked 1 NO + 1 NC IEC 60947-5-1, mirror contact 1 NC IEC 60947-4-1
    Control Circuit TypeAC 50/60 Hz
    DimensionsWidth 1.77 in (45 mm), Height 3.35 in (85 mm), Depth 3.62 in (92 mm)
    Mounting Supportrail, plate
    Operating Altitude0 to 3000 m (9843 ft)
    Fire Resistance850 b0C IEC 60695-2-1
    Product CertificationsUL, BV, RINA, GOST, DNV, Lloyds Register, CCC, GL, CSA, UKCA
