Schneider Electric LC1D40AG7 TeSys Deca 3P Contactor, 40A, 120V AC Coil, IP20, Compact 55mm
- MPN: LC1D40AG7
- PPN: SCH-LC1D40AG7
CAD
$413.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 40A/440V AC-3/3e (18.5kW@400V). They can be used to create motor starters for almost any type of application. It provides a 120V 60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Contactor is rated for 10HP at 200 to 208VAC, 10HP at 240VAC, 30HP at 480VAC and 30HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 110A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 90A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 120 VAC 60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 1.87 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Features
- Designed for high-performance power switching, this 3-pole contactor is rated for 40A under AC-3 conditions and up to 60A under AC-1 resistive loads. This makes it the ideal choice for controlling large industrial motors up to 30 HP at 480V, ensuring your manufacturing lines or commercial HVAC blowers operate with maximum electrical efficiency and minimal wear.
- Featuring a standard 120V AC G7 coil, this contactor integrates seamlessly into most North American industrial control panels without the need for additional step-down transformers. The dual-frequency design ensures stable, chatter-free operation across both 50Hz and 60Hz systems, providing reliable magnetic actuation for automated processes and irrigation pumps.
- Equipped with Schneider Electric s patented EverLinkTM creep-free technology, the power terminals maintain constant pressure on the cables even as the copper expands and contracts under load. This revolutionary design eliminates the need for frequent manual re-tightening, significantly reducing the risk of localized overheating and electrical fires in high-vibration industrial environments.
- This contactor comes factory-equipped with 1 NO (Normally Open) and 1 NC (Normally Closed) instantaneous auxiliary contacts, allowing for immediate feedback to your PLC or status indicator lights. These integrated contacts simplify your wiring for safety interlocking and remote monitoring, saving valuable DIN-rail space while enhancing the total visibility of your automated system.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, Indonesia, United States
Depth120 mm
Complementary Attributes
- Control Circuit Type
- AC 60 Hz, AC 60 Hz
- Control Circuit Voltage Limits
- 0.3...0.6 Uc (-40-70 °C):drop-out AC 60 Hz0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz1...1.1 Uc (60-70 °C):operational AC 60 Hz
- Maximum Motor Phase Current
- 40 A
- Minimum Switching Current
- 5 mA for signalling circuit
- Rated Breaking Capacity
- 800 A at 440 V for power circuit conforming to IEC 60947
Maximum Horse Power Rating5 hp at 230/240 V AC 50/60 Hz for 1 phase motors10 hp at 230/240 V AC 50/60 Hz for 3 phase motors30 hp at 575/600 V AC 50/60 Hz for 3 phase motors, 10 hp at 200/208 V AC 50/60 Hz for 3 phase motors3 hp at 115 V AC 50/60 Hz for 1 phase motors, 30 hp at 460/480 V AC 50/60 Hz for 3 phase motors
Irms Rated Making Capacity140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1800 A at 440 V for power circuit conforming to IEC 60947
Maximum Operating Rate3600 cyc/h at 60 °C
Minimum Switching Voltage17 V for signalling circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-180 A gG at <= 690 V coordination type 1 for power circuit, 80 A gG at <= 690 V coordination type 2 for power circuit
- Electrical Durability
- 1.4 Mcycles 60 A AC-1 <= 440 V, 1.5 Mcycles 40 A AC-3 <= 440 V, 1.5 Mcycles 40 A AC-3e <= 440 V
- Mechanical Robustness
- vibrations contactor open 2 Gn, 5...300 Hz)vibrations contactor closed 4 Gn, 5...300 Hz)shocks contactor closed 15 Gn for 11 ms), shocks contactor open 10 Gn for 11 ms)
- Mounting Support
- rail, plate
- Range
- TeSys, TeSys Deca
- Utilisation Category
- AC-3, AC-3e, AC-1, AC-4
- Certificate Agency
- CCC, UL, CB Scheme, CSA, CE, UKCA, Marine, EAC
- [Uc] Control Circuit Voltage
- 120 V, 120 V AC 60 Hz
- Connections - Terminals
- control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable endcontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable endcontrol circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable endpower circuit: screw clamp terminals 2 1-25 mm² - cable stiffness: flexible without cable endpower circuit: screw clamp terminals 1 1-35 mm² - cable stiffness: flexible with cable endpower circuit: screw clamp terminals 2 1-25 mm² - cable stiffness: flexible with cable endpower circuit: screw clamp terminals 1 1-35 mm² - cable stiffness: solid without cable endpower circuit: screw clamp terminals 2 1-25 mm² - cable stiffness: solid without cable endEverLink BTR screw connectorscontrol circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable endcontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 1 1-35 mm² - cable stiffness: flexible without cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.42873297932635546, 0.4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.05584611554662137
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 54 kg CO2 eq., 53.57766617965933
- Local Publishable Date
- 2026-07-07
- Stocking Flag
- N
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Coil Technology
- without built-in suppressor module
- Contact Compatibility
- M2
- Fire Resistance
- 850 °C IEC 60695-2-1
- Inrush Power In Va
- 140-140 VA 60 Hz cos phi 0.75 (at 20 °C)
- Number Of Poles
- 3P
- Overvoltage Category
- III
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- THIEC 60068-2-30
- Returnability
- Yes
- Signalling Circuit Frequency
- 25...400 Hz
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Inf Motor Phase Current
- 40 A
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 595.68
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.

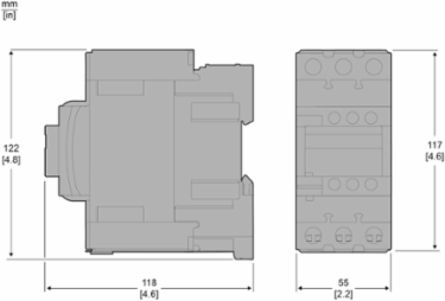

- Height Nominal
- 122 mm
- [Icw] Rated Short-time Withstand Current
- 320 A 40 °C - 10 s for power circuit720 A 40 °C - 1 s for power circuit72 A 40 °C - 10 min for power circuit165 A 40 °C - 1 min for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit
- [Ue] Rated Operational Voltage
- power circuit <= 690 V AC 25...400 Hzpower circuit <= 300 V DC
- Hold-in Power Consumption In Va
- 13-13 VA 60 Hz cos phi 0.3 (at 20 °C)
- Package Weight(Lbs)
- 939 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Contactor Applicationmotor control, resistive load
Insulation Resistance> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Motor Power Kw18.5 kW at 380/400 V AC 50/60 Hz (AC-3e), 22 kW at 415/440 V AC 50/60 Hz (AC-3e), 22 kW at 500 V AC 50/60 Hz (AC-3e), 30 kW at 660/690 V AC 50/60 Hz (AC-3e), 11 kW at 220/230 V AC 50/60 Hz (AC-3)18.5 kW at 380/400 V AC 50/60 Hz (AC-3)22 kW at 415/440 V AC 50/60 Hz (AC-3), 22 kW at 500 V AC 50/60 Hz (AC-3)30 kW at 660/690 V AC 50/60 Hz (AC-3), 11 kW at 220/230 V AC 50/60 Hz (AC-3e), 9 kW at 400 V AC 50/60 Hz (AC-4)
Power Dissipation Per Pole2.4 W AC-35.4 W AC-1, 2.4 W AC-3e
Tightening Torquecontrol circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals Philips No 2power circuit 8 N.m EverLink BTR screw connectors 25-35 mm² hexagonal 4 mmpower circuit 5 N.m EverLink BTR screw connectors 1-25 mm² hexagonal 4 mm, control circuit 1.7 N.m screw clamp terminals pozidriv No 2, power circuit 2.5 N.m screw clamp terminals pozidriv No 2
Control Circuit Voltage120 V
[Ie] Rated Operational Current60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 40 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
[Ui] Rated Insulation Voltagesignalling circuit 600 V CSA, signalling circuit 600 V UL, power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1, power circuit 690 V IEC 60947-4-1
Non-overlap Time1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The End-of-life Phase [C1 To C4]1.2994321372133595, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]5 kg CO2 eq., 4.573365611546233
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1503009EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1926
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Impedance1.5 mOhm - Ith 60 A 50 Hz for power circuit
Compatibility CodeLC1D
Device Short NameLC1D
Heat Dissipation4-5 W at 60 Hz
Mechanical Durability6 Mcycles
Operating Time4...19 ms opening12...26 ms closing
Pole Contact Composition3 NO
Product Or Component Typecontactor
Range Of ProductTeSys Deca
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Software Versionv6.2.4
Total Lifecycle Carbon Footprint60 kg CO2 eq.
Connections TerminalsEverLink BTR screw connectors
Pep CodeENVPEP1503009EN
Pep Verification Date2026-03-17
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; France, FR
Recyclability Potential In %62
Width Nominal55 mm
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C) for signalling circuit60 A (at 60 °C) for power circuit
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 59.9350430232919
- Environmental Disclosure
- ENVPEP1503009EN
- Ip Degree Of Protection
- IP20 front face IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Permissible Ambient Air Temperature Around The Device
- -40-60 °C-40-60 °C60-70 °C with derating
- Pep Code
- ENVPEP1503009EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Climatic WithstandIACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1503009EN
Eu Rohs DirectiveCompliant
Operating Altitude0...9842.52 ft (0...3000 m)
Packaging Without Single Use PlasticYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2026-03-17
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
