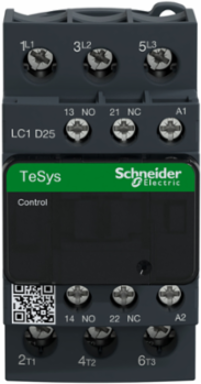

Schneider Electric LC1D25F7 TeSys D Contactor 3P 25A 110V AC Coil, <=440V, Screw Clamp Terminals
- MPN: LC1D25F7
- PPN: SCH-LC1D25F7
CAD
$275.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys D contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3/3e (11kW@400V). It provides a 110V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Features
- Engineered for demanding industrial motor control applications, this 3-pole (3 NO) IEC contactor features a robust 25 A rating for AC-3/AC-3e inductive loads up to 440 V, allowing it to comfortably manage up to 15 HP at 460 VAC or 20 HP at 575 VAC. It prevents premature contact pitting during high-inrush motor starts, while an impressive 40 A AC-1 rating ensures plenty of thermal headroom when switching purely resistive heating elements or lighting loads.
- Equipped with a standard 110 V AC 50/60 Hz coil, this model ensures seamless drop-in integration into standard North American control transformers and industrial automation networks without requiring extra control relays. The premium-grade internal coil design manages voltage fluctuations reliably—guaranteeing strict pull-in and drop-out windows—effectively eliminating the chatter that causes system faults and field downtime.
- The unit features built-in, factory-integrated 1 NO + 1 NC auxiliary contacts, saving valuable enclosure space by removing the absolute requirement for external add-on blocks. The NC auxiliary path is officially mirror-contact certified according to IEC 60947-4-1 standards, giving your PLC or safety monitoring system verifiable feedback on the physical state of the main contacts to fulfill strict modern safety and interlocking protocols.
- This mechanical stability eliminates terminal overheating caused by loose wires and combines with a mechanical life rated for 15 million cycles to ensure trouble-free service in heavy industrial environments.
- Fully certified under global and regional regulatory standards including UL 60947-4-1, CSA C22.2, UKCA, and CCC, this contactor allows your custom control panels to pass field inspections and comply with local commercial building codes. Furthermore, its upgraded IEC 60335-1 fire resistance housing ensures exceptional flame retardance and electrical insulation safety margins under severe, continuous thermal conditions.
Documentation & Downloads
Specifications
Key Specifications
- [Uc] Control Circuit Voltage
- 110 V AC 50/60 Hz
- Range Of Product
- TeSys Deca
- Product Or Component Type
- contactor
- [Ie] Rated Operational Current
- 25 A (at <60 °C) at <= 440 V AC AC-3 for power circuit || 40 A (at <60 °C) at <= 440 V AC AC-1 for power circuit || 25 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
- Device Short Name
- LC1D
[Ue] Rated Operational Voltagepower circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC
Contactor Applicationresistive load || motor control
Utilisation CategoryAC-3 || AC-4 || AC-1 || AC-3e
Poles Description3P
Complementary
- Non-Overlap Time
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- Power Dissipation Per Pole
- 3.2 W AC-1 || 1.25 W AC-3 || 1.25 W AC-3e
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Control Circuit Voltage Limits
- 0.3...0.6 Uc -40-70 °C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60 °C operational AC 50 Hz || 0.85...1.1 Uc -40-60 °C operational AC 60 Hz || 1...1.1 Uc 60-70 °C operational AC 50/60 Hz
- Contact Compatibility
- M2
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Insulation Resistance
- > 10 MOhm for signalling circuit
- Irms Rated Making Capacity
- 140 A AC for signalling circuit conforming to IEC 60947-5-1 || 250 A DC for signalling circuit conforming to IEC 60947-5-1 || 450 A at 440 V for power circuit conforming to IEC 60947
- Inrush Power In Va
- 70-70 VA 60 Hz cos phi 0.75 (at 20 °C) || 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)
- Pole Contact Composition
- 3 NO
- Coil Technology
- without built-in suppressor module
- Minimum Switching Voltage
- 17 V for signalling circuit
- Signalling Circuit Frequency
- 25...400 Hz
- Electrical Durability
- 1.65 Mcycles 25 A AC-3 <= 440 V || 1.4 Mcycles 40 A AC-1 <= 440 V || 1.65 Mcycles 25 A AC-3e <= 440 V
- Auxiliary Contacts Type
- mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
- Hold-In Power Consumption In Va
- 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C) || 7-7 VA 50 Hz cos phi 0.3 (at 20 °C)
- Motor Power Hp
- 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors || 2 hp at 115 V AC 50/60 Hz for 1 phase motors || 7.5 hp at 230/240 V AC 50/60 Hz for 3 phases motors || 15 hp at 460/480 V AC 50/60 Hz for 3 phases motors || 20 hp at 575/600 V AC 50/60 Hz for 3 phases motors || 7.5 hp at 200/208 V AC 50/60 Hz for 3 phases motors
- [Ui] Rated Insulation Voltage
- power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL
- Heat Dissipation
- 2-3 W at 50/60 Hz
Minimum Switching Current5 mA for signalling circuit
Average Impedance2 mOhm - Ith 40 A 50 Hz for power circuit
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C) for signalling circuit || 40 A (at 60 °C) for power circuit
Mounting Supportplate || rail
Control Circuit TypeAC 50/60 Hz standard
Pollution Degree3
Rated Breaking Capacity450 A at 440 V for power circuit conforming to IEC 60947
Associated Fuse Rating10 A gG for signalling circuit conforming to IEC 60947-5-1 || 63 A gG at <= 690 V coordination type 1 for power circuit || 40 A gG at <= 690 V coordination type 2 for power circuit
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
Connections - Terminalscontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end || power circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible without cable end || power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible without cable end || power circuit: screw clamp terminals 1 1-10 mm² - cable stiffness: flexible with cable end || power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible with cable end || power circuit: screw clamp terminals 1 1.5-10 mm² - cable stiffness: solid without cable end || power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: solid without cable end
Operating Time12...22 ms closing || 4...19 ms opening
Maximum Operating Rate3600 cyc/h 60 °C
Tightening Torquecontrol circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 2.5 N.m screw clamp terminals flat Ø 6 mm || power circuit 2.5 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 2.5 N.m screw clamp terminals pozidriv No 2
Mechanical Durability15 Mcycles
Compatibility CodeLC1D
Overvoltage CategoryIII
Motor Power Kw5.5 kW at 220...230 V AC 50/60 Hz (AC-3) || 11 kW at 380...400 V AC 50/60 Hz (AC-3) || 11 kW at 415...440 V AC 50/60 Hz (AC-3) || 15 kW at 500 V AC 50/60 Hz (AC-3) || 15 kW at 660...690 V AC 50/60 Hz (AC-3) || 5.5 kW at 400 V AC 50/60 Hz (AC-4) || 5.5 kW at 220...230 V AC 50/60 Hz (AC-3e) || 11 kW at 380...400 V AC 50/60 Hz (AC-3e) || 11 kW at 415...440 V AC 50/60 Hz (AC-3e) || 15 kW at 500 V AC 50/60 Hz (AC-3e) || 15 kW at 660...690 V AC 50/60 Hz (AC-3e)
[Icw] Rated Short-Time Withstand Current240 A 40 °C - 10 s for power circuit || 380 A 40 °C - 1 s for power circuit || 50 A 40 °C - 10 min for power circuit || 120 A 40 °C - 1 min for power circuit || 100 A - 1 s for signalling circuit || 120 A - 500 ms for signalling circuit || 140 A - 100 ms for signalling circuit
Protective Coverwith
Environment
- Product Certifications
- UL || BV || RINA || CCC || GL || GOST || DNV || LROS (Lloyds register of shipping) || CSA || UKCA
- Standards
- CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1
- Net Weight
- 0.37 kg
- Protective Treatment
- THIEC 60068-2-30
- Mechanical Robustness
- vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor closed 15 Gn for 11 ms) || shocks contactor open 8 Gn for 11 ms)
- Fire Resistance
- 850 °C IEC 60695-2-1
- Depth
- 92 mm
Height85 mm
Climatic WithstandIACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat
Flame RetardanceV1 UL 94
Ip Degree Of ProtectionIP20 front face IEC 60529
Operating Altitude0...3000 m
Width45 mm
Permissible Ambient Air Temperature Around The Device-40-60 °C || 60-70 °C with derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110229EN
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI110229EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant
