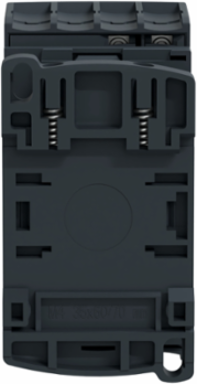

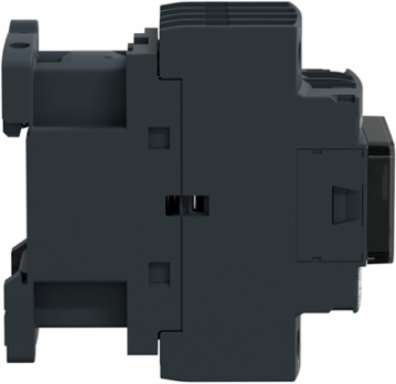

Schneider Electric LC1D128G7 TeSys Deca Contactor, 4 Pole (2NO+2NC), 25A, 120V AC Coil

MPN: LC1D128G7
PPN: SCH-LC1D128G7

$247.35

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 25A/690V AC-1. They can be used to create motor starters for almost any type of application. It provides a 120V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Power contacts have a 25A resistive load rating. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.62 inches deep. It weighs 0.80 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Features

Engineered with two normally open (NO) and two normally closed (NC) main power contacts, this specialized TeSys Deca contactor delivers advanced switching capabilities directly out of the box. This versatile footprint eliminates the frustrating need to chain together multiple discrete relays, allowing panel builders to efficiently manage logic for resistive heating banks, lighting circuits, and dual-state power routing in a single, space-saving unit.
Strictly optimized for non-inductive or slightly inductive applications, this robust IEC contactor reliably handles up to 25 amps of continuous current at up to 690V (AC-1 duty). Paired with an industry-standard 120VAC (50/60Hz) control coil, it provides highly reliable, heavy-duty switching that prevents premature contact wear and significantly extends the operational lifespan of your automated thermal and lighting equipment.
Equipped with built-in 1 NO and 1 NC auxiliary contacts, this component delivers immediate, reliable state feedback directly to your Programmable Logic Controller (PLC) or control panel pilot lights. The normally closed contact is mechanically linked and strictly "mirror certified" to IEC safety standards, ensuring that if a main power contact ever welds shut from an electrical fault, the NC auxiliary absolutely cannot close, guaranteeing fail-safe performance for your critical interlocking circuits.
Designed for fast, snap-on installation onto any standard 35mm DIN rail or direct panel screw-mounting, this highly compact 45mm-wide contactor maximizes valuable real estate inside high-density industrial enclosures. The rugged, IP20-rated screw clamp terminals completely shield electricians from exposed live voltage during routine panel maintenance, speeding up safe wiring procedures while ensuring your facility strictly complies with OSHA and NEC workplace safety regulations.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Costa Rica, France, Indonesia, Mexico, United States

Depth	92 mm

Complementary Attributes

Control Circuit Type	AC 50/60 Hz, AC 50/60 Hz
Irms Rated Making Capacity	250 A at 440 V for power circuit conforming to IEC 60947140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1
Minimum Switching Current	5 mA for signalling circuit
Rated Breaking Capacity	250 A at 440 V for power circuit conforming to IEC 60947

Control Circuit Voltage Limits	0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz1...1.1 Uc (60-70 °C):operational AC 50/60 Hz
Maximum Operating Rate	3600 cyc/h at 60 °C
Minimum Switching Voltage	17 V for signalling circuit

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Inrush Power In Va	70-70 VA 60 Hz cos phi 0.75 (at 20 °C), 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)
Mechanical Robustness	vibrations contactor open 2 Gn, 5...300 Hz)vibrations contactor closed 4 Gn, 5...300 Hz)shocks contactor open 10 Gn for 11 ms), shocks contactor closed 15 Gn for 11 ms)
Tightening Torque	control circuit 1.7 N.m screw clamp terminals Philips No 2power circuit 1.7 N.m screw clamp terminals pozidriv No 2, power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, power circuit 1.7 N.m screw clamp terminals Philips No 2, control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals pozidriv No 2
Certificate Agency	UL, CCC, CSA, Marine, UKCA, EAC, CB Scheme
[Ui] Rated Insulation Voltage	signalling circuit 600 V CSA, signalling circuit 600 V ULpower circuit 690 V IEC 60947-4-1power circuit 600 V CSA, power circuit 600 V ULsignalling circuit 690 V IEC 60947-1
Non-overlap Time	1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The Installation Phase [A5]	0.1 kg CO2 eq., 0.05961800783076285
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	32 kg CO2 eq., 31.989018336678964
Local Publishable Date	2026-07-07
Stocking Flag	N
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Impedance	2.5 mOhm - Ith 25 A 50 Hz for power circuit
Compatibility Code	LC1D
Contactor Application	resistive load
Electrical Durability	0.8 Mcycles 25 A AC-1 <= 440 V
Flame Retardance	V1 conforming to UL 94
Mechanical Durability	15 Mcycles
Operating Time	12...22 ms closing4...19 ms opening
Pole Contact Composition	2 NO + 2 NC
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	THIEC 60068-2-30
Returnability	Yes
Signalling Circuit Frequency	25...400 Hz
Sustainable Packaging	Yes
Utilisation Category	AC-1
Connections Terminals	screw clamp terminals
Pep Code	ENVPEP1501004EN
Pep Verification Date	2026-03-17
Psr Version	PSR-0005-ed3-2023 06 06
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	85 mm
[Icw] Rated Short-time Withstand Current	105 A 40 °C - 10 s for power circuit210 A 40 °C - 1 s for power circuit30 A 40 °C - 10 min for power circuit61 A 40 °C - 1 min for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit
[Ith] Conventional Free Air Thermal Current	25 A (at 60 °C) for power circuit10 A (at 60 °C) for signalling circuit
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Rated Thermal Current (Ith)	25 A
Package Weight(Lbs)	394.000 g
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Insulation Resistance	> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Mounting Support	rail, plate
Control Circuit Voltage	120 V
[Uc] Control Circuit Voltage	120 V, 120 V AC 50/60 Hz
Connections - Terminals	power circuit: 2 1-2.5 mm² - cable stiffness: flexible with cable endpower circuit: 2 1-4 mm² - cable stiffness: solid without cable endcontrol circuit: 2 1-4 mm² - cable stiffness: flexible without cable endcontrol circuit: 1 1-4 mm² - cable stiffness: flexible with cable endcontrol circuit: 2 1-2.5 mm² - cable stiffness: flexible with cable endcontrol circuit: 1 1-4 mm² - cable stiffness: solid without cable endcontrol circuit: 2 1-4 mm² - cable stiffness: solid without cable endscrew clamp terminalspower circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
Carbon Footprint Of The Distribution Phase [A4]	0.16917571616661592, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	2 kg CO2 eq., 1.5136785647517297
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1501004
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2538
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Associated Fuse Rating	10 A gG for signalling circuit conforming to IEC 60947-5-140 A gG at <= 690 V coordination type 1 for power circuit25 A gG at <= 690 V coordination type 2 for power circuit
Coil Technology	without built-in suppressor module
Contact Compatibility	M6
Device Short Name	LC1D
Fire Resistance	850 °C IEC 60695-2-1
Heat Dissipation	2-3 W at 50/60 Hz
Number Of Poles	4P
Overvoltage Category	III
Power Dissipation Per Pole	1.56 W AC-1
Product Or Component Type	contactor
Range Of Product	TeSys Deca
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	34 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rated Thermal Current Hv	25 A
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; France, FR
Recyclability Potential In %	66
Width Nominal	45 mm
[Ie] Rated Operational Current	25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
[Ue] Rated Operational Voltage	power circuit <= 690 V AC 25...400 Hzpower circuit <= 300 V DC
Hold-in Power Consumption In Va	7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7-7 VA 50 Hz cos phi 0.3 (at 20 °C)
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536490065

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1501004
Eu Rohs Directive	Compliant
Operating Altitude	0...9842.52 ft (0...3000 m)
Packaging Without Single Use Plastic	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1501004EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Climatic Withstand	IACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	33.73149062542807
Environmental Disclosure	ENVPEP1501004EN
Ip Degree Of Protection	IP20 front face IEC 60529
Packaging Made With Recycled Cardboard	Yes
Permissible Ambient Air Temperature Around The Device	-40-60 °C-40-60 °C60-70 °C with derating
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2026-03-17
Psr Version	PSR-0005-ed3-2023 06 06
