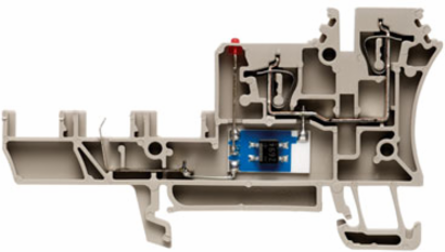

Weidmuller 1652020000 ZIA 1.5/4L-1S/LD
- MPN: 1652020000
- PPN: WDM-1652020000
CAD
$9.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Initiator/actuator terminal, Tension-clamp connection, 1.5 mm², Flange-mounted housing, Tension-clamp connection, with LED, pluggable, LED
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, CSA, EAC, UR
- UL File Number Search
- E60693
ROHSConform
Display Element
- Indicator element
- LED
- Operating voltage for display, min.
- 5 V
Operating voltage for display, max.30 V
Type of voltage for indicatorAC/DC
Dimensions And Weights
- Width
- 5.08 mm
- Height
- 81.5 mm
- Depth
- 45.5 mm
- Depth including DIN rail
- 46 mm
Width (inches)0.2 inch
Height (inches)3.209 inch
Depth (inches)1.791 inch
Net weight7.64 g
Dimensions
- TS 35 offset
- 40.5 mm
Csa Rating Data
- Certificate No. (CSA)
- 200039-1068678
- Current size D (CSA)
- 10 A
- Voltage size D (CSA)
- 300 V
- Wire cross section min. (CSA)
- 26 AWG
Current size B (CSA)10 A
Voltage size B (CSA)300 V
Wire cross section max. (CSA)14 AWG
Additional Technical Data
- Explosion-tested version
- No
- Type of mounting
- Snap-on
Open sidesright
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000900
- eClass 9.0
- 27-14-11-28
- eClass 10.0
- 27-14-11-28
ETIM 7.0EC000900
eClass 9.127-14-11-28
UNSPSC30-21-18-11
System Specifications
- Version
- Flange-mounted housing, Tension-clamp connection, with LED, pluggable
- Number of potentials
- 1
- Number of clamping points per level
- 2
- Levels cross-connected internally
- No
- Rail
- TS 35
- PE function
- No
End cover plate requiredYes
Number of levels2
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Conductors For Clamping (Additional Connection)
- Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
- 1.5 mm²
Pe Rating Data
- PEN function
- No
Rating Data
- Rated cross-section
- 1.5 mm²
- Rated current
- 17.5 A
- Volume resistance according to IEC 60947-7-x
- 1.83 mΩ
- Rated impulse withstand voltage
- 4 kV
Rated voltage30 V
StandardsIn accordance with IEC 60947-7-1
Power loss in accordance with IEC 60947-7-x0.56 W
Pollution severity3
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.13 mm²
- Gauge to IEC 60947-1
- A1
- Stripping length
- 7 mm
- Twin wire-end ferrules, min.
- 0.5 mm²
- Wire connection cross section AWG, max.
- AWG 14
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 2.5 mm²
Clamping range, max.2.5 mm²
Connection directiontop
Number of connections2
Twin wire-end ferrules, max.0.75 mm²
Type of connectionTension-clamp connection
Wire connection cross section AWG, min.AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.1.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 26 AWG
- Conductor size Field wiring min. (UR)
- 26 AWG
- Voltage size D (UR)
- 300 V
Conductor size Factory wiring max. (UR)14 AWG
Conductor size Field wiring max. (UR)14 AWG
Current size D (UR)10 A
