Weidmuller 1652010000 ZIA 1.5/4L-1S
- MPN: 1652010000
- PPN: WDM-1652010000
CAD
$3.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

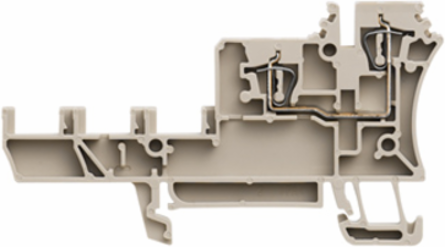

Initiator/actuator terminal, Tension-clamp connection, 1.5 mm², Flange-mounted housing
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, CSA, EAC, UR |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 5.08 mm |
|---|---|
| Height | 81.5 mm |
| Depth | 45.5 mm |
| Depth including DIN rail | 46 mm |
| Width (inches) | 0.2 inch |
|---|---|
| Height (inches) | 3.209 inch |
| Depth (inches) | 1.791 inch |
| Net weight | 5.96 g |
Dimensions
| TS 35 offset | 40.5 mm |
|---|
Csa Rating Data
| Certificate No. (CSA) | 200039-1068678 |
|---|---|
| Current size D (CSA) | 10 A |
| Voltage size D (CSA) | 300 V |
| Wire cross section min. (CSA) | 26 AWG |
| Current size B (CSA) | 10 A |
|---|---|
| Voltage size B (CSA) | 300 V |
| Wire cross section max. (CSA) | 14 AWG |
Additional Technical Data
| Explosion-tested version | No |
|---|---|
| Type of mounting | Snap-on |
| Open sides | right |
|---|
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | dark beige |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000900 |
|---|---|
| eClass 9.0 | 27-14-11-28 |
| eClass 10.0 | 27-14-11-28 |
| ETIM 7.0 | EC000900 |
|---|---|
| eClass 9.1 | 27-14-11-28 |
| UNSPSC | 30-21-18-11 |
System Specifications
| Version | Flange-mounted housing |
|---|---|
| Number of potentials | 1 |
| Number of clamping points per level | 2 |
| PE connection | No |
| N-function | No |
| PEN function | No |
| End cover plate required | Yes |
|---|---|
| Number of levels | 1 |
| Levels cross-connected internally | No |
| Rail | TS 35 |
| PE function | No |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 120 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
Conductors For Clamping (Additional Connection)
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 1.5 mm² |
|---|
Pe Rating Data
| PEN function | No |
|---|
Rating Data
| Rated cross-section | 1.5 mm² |
|---|---|
| Rated current | 17.5 A |
| Volume resistance according to IEC 60947-7-x | 1.83 mΩ |
| Rated impulse withstand voltage | 4 kV |
| Rated voltage | 250 V |
|---|---|
| Standards | In accordance with IEC 60947-7-1 |
| Power loss in accordance with IEC 60947-7-x | 0.56 W |
| Pollution severity | 3 |
Conductors For Clamping (Rated Connection)
| Blade size | 0.6 x 3.5 mm |
|---|---|
| Clamping range, min. | 0.13 mm² |
| Gauge to IEC 60947-1 | A1 |
| Stripping length | 7 mm |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 2.5 mm² |
| Clamping range, max. | 2.5 mm² |
|---|---|
| Connection direction | top |
| Number of connections | 2 |
| Twin wire-end ferrules, max. | 0.75 mm² |
| Type of connection | Tension-clamp connection |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
Ul Rating Data
| Certificate No. (UR) | E60693 |
|---|---|
| Conductor size Factory wiring min. (UR) | 26 AWG |
| Conductor size Field wiring min. (UR) | 26 AWG |
| Voltage size D (UR) | 300 V |
| Conductor size Factory wiring max. (UR) | 14 AWG |
|---|---|
| Conductor size Field wiring max. (UR) | 14 AWG |
| Current size D (UR) | 10 A |
