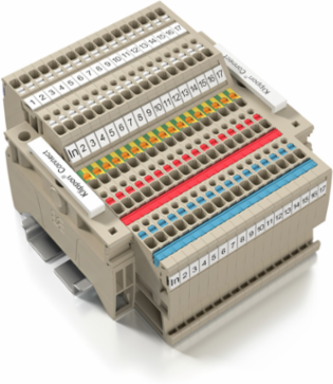

Weidmuller 1992230000 AIO22 Actuator Terminal, 1.5 mm2, 250 V, 13.5 A, Dark Beige
- MPN: 1992230000
- PPN: WDM-1992230000
CAD
$12.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

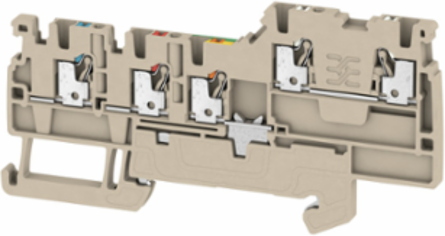

Initiator/actuator terminal, PUSH IN, 1.5 mm², 250 V, 13.5 A, dark beige
Documentation & Downloads
Specifications
Approvals
| Approvals | BURVER, CE, CSA, cURus, DNV GL, IECEXTUR, TUEVNATEX |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 3.5 mm |
|---|---|
| Height | 89 mm |
| Depth | 45 mm |
| Depth including DIN rail | 46 mm |
| Width (inches) | 0.138 inch |
|---|---|
| Height (inches) | 3.504 inch |
| Depth (inches) | 1.772 inch |
| Net weight | 11.267 g |
Csa Rating Data
| Certificate No. (CSA) | 200039-70089609 |
|---|---|
| Voltage size D (CSA) | 150 V |
| Wire cross section min. (CSA) | 26 AWG |
| Current size D (CSA) | 13 A |
|---|---|
| Wire cross section max. (CSA) | 14 AWG |
Additional Technical Data
| Installation advice | Rail |
|---|---|
| Snap-on | No |
| Type of mounting | TS 35 |
| Open sides | right |
|---|---|
| Type of fixing | Snap-on |
| With snap-in pegs | No |
Material Data
| Material | Wemid |
|---|---|
| Colour of operational elements | blue, red, Green/yellow, white |
| Colour | dark beige |
|---|---|
| UL 94 flammability rating | V-0 |
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000900 |
|---|---|
| eClass 9.0 | 27-14-11-28 |
| eClass 10.0 | 27-14-11-28 |
| ETIM 7.0 | EC000900 |
|---|---|
| eClass 9.1 | 27-14-11-28 |
Product Information
| Product information | For the wire end ferrules H1/10 and H1.5/10 a stripping length of 10 mm is to apply. |
|---|
System Specifications
| End cover plate required | Yes |
|---|---|
| Number of levels | 2 |
| PE connection | Yes |
| N-function | Yes |
| PEN function | No |
| Number of potentials | 4 |
|---|---|
| Levels cross-connected internally | No |
| Rail | TS 35 |
| PE function | Yes |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 130 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -60 °C |
Pe Rating Data
| PEN function | No |
|---|
Rating Data
| Rated cross-section | 1.5 mm² |
|---|---|
| Rated current | 13.5 A |
| Standards | In accordance with IEC 60947-7-1 |
| Power loss in accordance with IEC 60947-7-x | 0.56 W |
| Pollution severity | 3 |
| Rated voltage | 250 V |
|---|---|
| Current at maximum wires | 13.5 A |
| Volume resistance according to IEC 60947-7-x | 1.83 mΩ |
| Rated impulse withstand voltage | 4 kV |
| Surge voltage category | III |
Rating Data Iecex/Atex
| Certificate No. (ATEX) | TUEV17ATEX8031U |
|---|---|
| Max. voltage (ATEX) | 220 V |
| Wire cross section max. (ATEX) | 1.5 mm² |
| Current (IECEX) | 12 A |
| Marking EN 60079-7 | Ex eb II C Gb |
| Certificate No. (IECEX) | IECEXTUR17.0016U |
|---|---|
| Current (ATEX) | 12 A |
| Max. voltage (IECEX) | 220 V |
| Wire cross section max. (IECEX) | 1.5 mm² |
| Ex 2014/34/EU label | II 2 G D |
Conductors For Clamping (Rated Connection)
| Blade size | 0.4 x 2.0 mm |
|---|---|
| Clamping range, min. | 0.14 mm² |
| Connection cross-section, stranded, min. | 0.5 mm² |
| Gauge to IEC 60947-1 | A1 |
| Stripping length | 8 mm |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire connection cross section, finely stranded, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 1.5 mm² |
| Clamping range, max. | 1.5 mm² |
|---|---|
| Connection cross-section, stranded, max. | 1.5 mm² |
| Connection direction | top |
| Number of connections | 5 |
| Type of connection | PUSH IN |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
Ul Rating Data
| Certificate No. (cURus) | E60693 |
|---|---|
| Conductor size Factory wiring min. (cURus) | 26 AWG |
| Conductor size Field wiring min. (cURus) | 26 AWG |
| Voltage size D (cURus) | 150 V |
| Conductor size Factory wiring max. (cURus) | 14 AWG |
|---|---|
| Conductor size Field wiring max. (cURus) | 14 AWG |
| Current size D (cURus) | 13 A |
