Weidmuller 1338260000 DK 4Q/TC TYP K
- MPN: 1338260000
- PPN: WDM-1338260000
CAD
$29.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

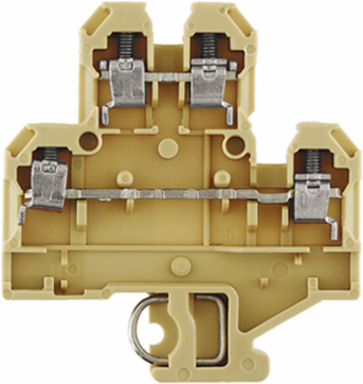

SAK Series, Thermocouple terminal, Double-tier terminal, Rated cross-section: 4 mm², Screw connection, Direct mounting
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 6 mm |
|---|---|
| Height | 54 mm |
| Depth | 59.5 mm |
| Net weight | 13.3 g |
| Width (inches) | 0.236 inch |
|---|---|
| Height (inches) | 2.126 inch |
| Depth (inches) | 2.343 inch |
Additional Technical Data
| Explosion-tested version | No |
|---|---|
| Number of similar terminals | 1 |
| Type of mounting | Snap-on |
| Installation advice | Direct mounting |
|---|---|
| Open sides | right |
Material Data
| Material | PA 66 |
|---|---|
| UL 94 flammability rating | V-2 |
| Colour | beige / yellow |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000897 |
|---|---|
| eClass 9.0 | 27-14-11-20 |
| eClass 10.0 | 27-14-11-20 |
| ETIM 7.0 | EC000897 |
|---|---|
| eClass 9.1 | 27-14-11-20 |
| UNSPSC | 30-21-18-11 |
System Specifications
| Version | Screw connection, Thermocouple, One end without connector |
|---|---|
| Number of potentials | 2 |
| Number of clamping points per level | 2 |
| Levels cross-connected internally | No |
| Rail | TS 32 |
| PE function | No |
| End cover plate required | Yes |
|---|---|
| Number of levels | 2 |
| Number of potentials per tier | 1 |
| PE connection | No |
| N-function | No |
| PEN function | No |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 100 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
Conductors For Clamping (Additional Connection)
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 2.5 mm² |
|---|
Rating Data
| Rated cross-section | 4 mm² |
|---|---|
| Standards | IEC 60584, IEC 60947-7-1 |
| Power loss in accordance with IEC 60947-7-x | 1.02 W |
| Rated voltage | 500 V |
|---|---|
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
Conductors For Clamping (Rated Connection)
| Blade size | 0.6 x 3.5 mm |
|---|---|
| Clamping screw | M 3 |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Gauge to IEC 60947-1 | A3 |
| Stripping length | 9 mm |
| Tightening torque, min. | 0.5 Nm |
| Type of connection | Screw connection |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Clamping range, max. | 4 mm² |
|---|---|
| Connection cross-section, stranded, max. | 4 mm² |
| Connection direction | on side |
| Number of connections | 4 |
| Tightening torque, max. | 1 Nm |
| Torque level with DMS electric screwdriver | 2 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
